You should know the main difference between a Miniature Circuit Breaker (MCB) and an MCCB. The MCB is best for homes and small shops, while the MCCB is used in big buildings and factories. Choosing the right circuit breaker, such as an MCB, keeps people safe. It also helps you follow the rules and save money. Most homes use MCBS, whereas factories use MCCBS because they need more power. The table below shows how MCCB use will grow in each area in 2025.

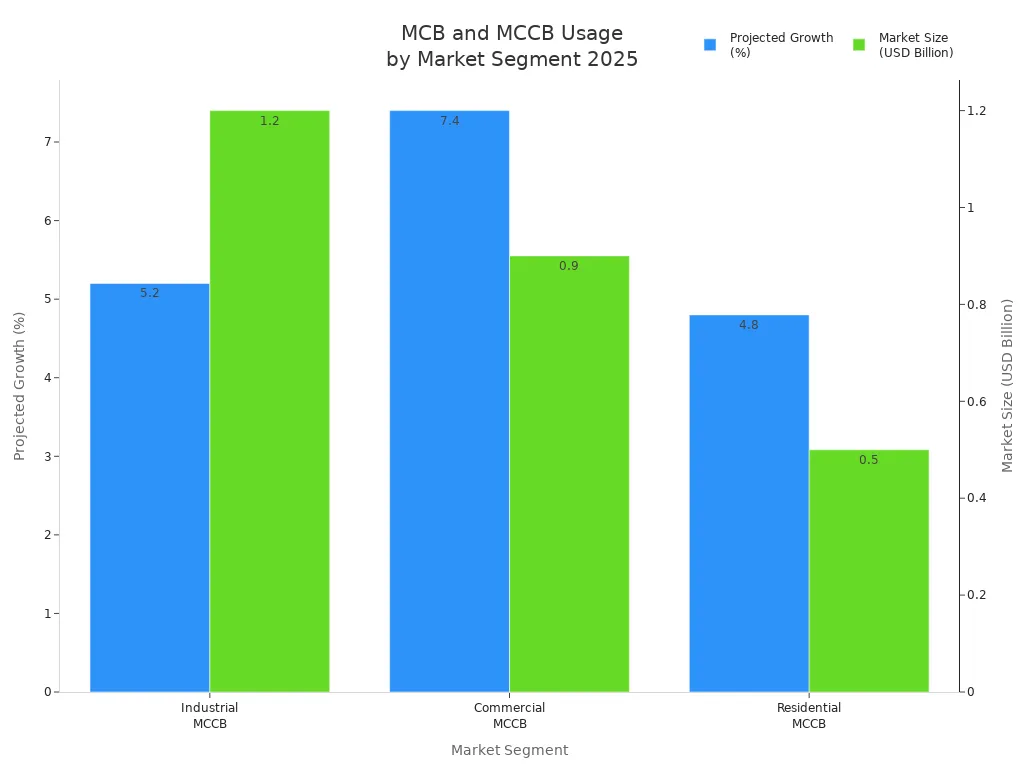

| Market Segment | Projected Growth (%) | Market Size (USD Billion) |
|---|---|---|
| Industrial MCCB | 5.2 | 1.2 |
| Commercial MCCB | 7.4 | 0.9 |
| Residential MCCB | 4.8 | 0.5 |
You should always talk to a trusted supplier like Changan Group. This helps you stay safe and follow the rules regarding circuit breaker contacts.
MCBs work best in homes and small stores. MCCBs are better for big buildings and factories. Pick one based on how much power you need.
Always look at the rated current and interrupting capacity first. This helps keep things safe and follows the rules.
MCBs are easy to use and you can reset them after they trip. This makes them a good and cheap choice for homes.
MCCBs let you change trip settings. This helps when you have tricky systems or need lots of power.
You must check and take care of both MCBs and MCCBs often. This keeps them safe and working well for a long time.
It is important to know how an mcb and an mccb work. Both help stop damage to electrical circuits. But they are made for different jobs. An mcb is small and handles less current. You usually find it in homes or small offices. An mccb is bigger and can handle much more current. You see it in factories and big buildings.
Here is a table that shows the main technical differences:
| Feature | MCB | MCCB |
|---|---|---|
| Rated Current | Up to 100 amps | 10-2500 amps |
| Interrupting Capacity | 10,000 to 18,000 amps | 10,000 to 200,000 amps |
| Trip Mechanism | Fixed trip points | Adjustable trip settings |
| Applicable Standards | IEC 60898-1 | IEC 60947-2 |
| Typical Applications | Residential and small offices | Industrial and commercial use |
An mcb follows IEC 60898-1 standards. This standard is for low voltage circuits up to 440V and 125A. That is why an mcb is good for homes. The mccb follows IEC 60947-2. This standard is for higher voltages and currents. So, an mccb is better for factories and big buildings.
Tip: Always look at the rated current and interrupting capacity before you choose a circuit breaker. This helps you pick the right one for your needs.
Use an mcb when you need to protect small circuits. These are best for homes, small shops, and light commercial places. An mcb acts fast if there is too much current or a short circuit. It keeps your wires and devices safe.
Use an mccb when you need to handle more power. These are good for big buildings and factories. An mccb can protect large machines and heavy equipment. You can also change the trip settings on an mccb. This gives you more control over safety.
Here are some common scenarios:
Use an mcb for:
Homes and apartments
Small offices
Shops with simple electrical needs
Use an mccb for:
Factories and warehouses
Shopping malls
Buildings with big machines or lots of power use
The right circuit breaker depends on your building size and power needs. If you choose the wrong one, you could have damage, spend more money, or face safety risks.
A miniature circuit breaker helps protect your electrical circuits. It turns off the power if there is too much current or a short circuit. This device is small and fits inside your home or office panel. You do not have to buy a new one after it trips. You just flip the switch back on after fixing the issue. The mcb is safer and more reliable than old fuses. It helps keep your wires and devices safe.
You can use a miniature circuit breaker in many places. People put them in homes, schools, and small businesses. It is made for lower currents. This makes it good for lights, outlets, and small appliances.
When you look at an mcb, you will see many helpful features. These features help keep your electrical system safe and working well.
The miniature circuit breaker comes in many current ratings. Most homes and offices use 6A to 32A. Big appliances may need 20A or 25A.
The mcb works with both AC and DC systems.
You can pick B-curve mcbs for lights and outlets. These are usually 6A, 10A, or 16A.
Here is a table that shows common ratings for a miniature circuit breaker:
| Application Type | Current Rating (A) | Voltage Rating (V) |
|---|---|---|
| Residential | 6 - 32 | AC or DC |
| Commercial | 6 - 32 | AC or DC |
| Industrial | 6 - 32 | AC or DC |
You also get strong safety features with an mcb:
It meets global standards like IEC, UL, and CSA for safety.
The mcb uses a delayed thermal trip for overloads. It uses a magnetic trip for short circuits.
Breaking capacities can go up to 25 kA. This means the miniature circuit breaker can handle strong surges.
You can find mcbs in different types, like single-pole or three-pole.
The small size saves space in your panel and makes it easy to install.
Tip: Always check the current and voltage rating before picking a miniature circuit breaker. This helps you choose the right mcb and keeps your system safe.
An mccb helps protect circuits that use a lot of power. It works where a regular miniature circuit breaker is not enough. You will see mccbs in factories and big office buildings. They are also in shopping centers. The mccb can stop electricity if there is too much current. It also stops power during a short circuit. This keeps fires and damage from happening.
Mccbs are special because they work with many current levels. Some are for small businesses. Others protect big machines in factories. You can change the trip settings on an mccb. This lets you pick the right protection for your needs.
An mccb has many features for big jobs. These features make it good for factories and large buildings. Here are some important things to know:
You can change the trip settings to fit your system.
The mccb can stop very large fault currents safely.
Many mccbs have ground fault protection and arc flash help.
Some let you check their status from far away.
The mccb can handle high currents when machines start up.
You will find mccbs in many places:
| Application Type | Description |
|---|---|
| Commercial MCCBs | Used in small- to mid-sized businesses, office buildings, and retail stores. |
| Industrial MCCBs | Designed for factories with large motor loads, featuring high ratings and rugged enclosures. |
Motor control centers in factories
Electrical panels in big buildings
Solar and wind energy systems
Backup generator systems
Large heating and cooling systems
In big buildings, the mccb protects things like HVAC, lights, and elevators. This helps everything work well. In factories, the mccb keeps motors and machines safe. You need this kind of protection when you use a lot of power and need things to work all the time.
Tip: Pick an mccb if you need strong and flexible protection for big or complex systems.
When picking a circuit breaker, you should check some key features. Each type works best for certain jobs. This part shows how mcb and mccb are different.
Current rating means how much current a circuit breaker can safely handle. MCBs can handle up to 100A. MCCBs can handle much more, from 100A to 2500A. There are special types for different uses. Type C, D, K, and Z have their own operating currents. These are used in places like commercial panels or with sensitive devices.

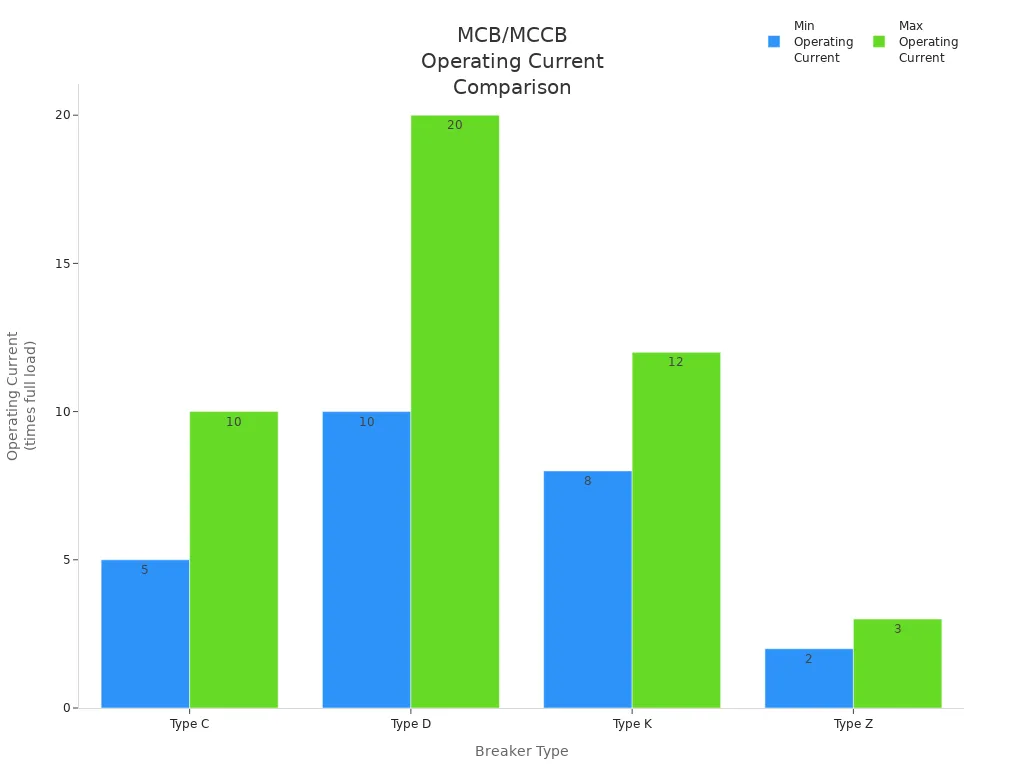

| Type | Operating Current (times full load) | Application Description |
|---|---|---|
| Type C | 5 to 10 | Commercial/Industrial |
| Type D | 10 to 20 | Specialty Industrial |
| Type K | 8 to 12 | Inductive/Motor Loads |
| Type Z | 2 to 3 | Sensitive Devices |
Breaking capacity shows how much fault current a breaker can stop. MCBs are good for lower breaking capacity, like 6kA to 10kA. This is enough for homes and small offices. MCCBs can handle much higher breaking capacity, up to 50kA or more. Factories and big buildings need this extra strength.
| Application Type | Breaking Capacity (kA) |
|---|---|
| Residential Circuits | 6 |
| Distribution Boards | 10 |
| Industrial Switchboards | 25 |
The trip mechanism finds problems and shuts off the power. MCBs use a thermal-magnetic trip mechanism. This works well for simple circuits. MCCBs use an electronic or microprocessor trip mechanism. This reacts faster, sometimes in just 4 milliseconds. It also gives more control and accuracy.
| Feature | MCB | MCCB |
|---|---|---|
| Trip Mechanism | Thermal-magnetic | Electronic/Microprocessor |
| Response Time | Longer | As fast as 4 ms |
| Reliability | Less flexible | More accurate |
MCBs are small and easy to put in. They fit into compact boards and do not need special tools. MCCBs are bigger and need more space in the panel. Installing an MCCB is harder and may need a trained electrician.
| Feature | MCB Board | MCCB Board |
|---|---|---|
| Current Rating | Up to 100A | 100A to 1200A |
| Size | Compact | Larger footprint |
| Installation Complexity | Simple | More complex |
MCBs cost less than MCCBs for the same current rating. You can buy an MCB for a lower price. An MCCB can cost $50 to $500, depending on its current rating and features.
| Equipment Type | Average Price Range |
|---|---|
| MCB (up to 125A) | Lower than MCCB |
| MCCB (100A-2500A) | $50 to $500 |
MCBs have fixed trip settings. You cannot change the current rating or trip delay. MCCBs let you adjust many settings. You can change continuous amps, long-time delay, and ground fault pickup. This makes MCCBs better for systems that need custom protection.
| Adjustable Setting | MCCB Description |
|---|---|
| Continuous Amps (Ir) | Set current rating from 20% to 100% of nominal value |
| Long-Time Delay | Adjust delay for inrush currents |
| Instantaneous Pickup | Set trip mechanism for fast response |
| Ground Fault Pickup | Adjust ground fault trip mechanism |
Tip: Always match the current rating and trip mechanism to your system’s needs. This keeps your equipment safe and helps you avoid costly repairs.
| Feature | MCB | MCCB |
|---|---|---|
| Current Rating | Up to 100A | 100A to 2500A |
| Breaking Capacity | 6-10kA | 15-50kA |
| Trip Mechanism | Thermal-magnetic | Electronic/Microprocessor |
| Size | Compact | Larger |
| Cost | Lower | Higher |
| Adjustability | Fixed | Adjustable |
You will find an mcb in many homes. It helps protect lights, fans, and outlets from problems. If too much current flows, the mcb shuts off power fast. This keeps your family and house safe. You do not have to buy a new one after it trips. Just flip the switch to turn the power back on. Many people like mcbs because they are simple to use. They also fit well in small places.
An mcb works for many things in your home. It is good for kitchen appliances, air conditioners, and water heaters. If you have a home office, the mcb protects computers and other devices. You can count on this circuit breaker to keep your home safe every day.
Tip: Always check the current rating before you put in an mcb at home. This helps you pick the right circuit breaker for each device.
Small shops, offices, and clinics use mcbs too. These places need a circuit breaker that is safe and reliable. An mcb gives both safety and dependability. It helps stop electrical fires and protects equipment from damage.
Here are some main benefits of using an mcb in small commercial buildings:
| Benefit | Description |
|---|---|
| Unparalleled Safety | MCBs turn off circuits during overloads or faults, making them safer than fuses. |
| User-Friendly and Reusable | MCBs can be reset after tripping, so they are easy to use and save money. |
| Efficient Fault Detection | MCBs help you find which circuit has a problem, so other circuits keep working. |
| Versatility | Different types of MCBs work for many electrical loads and uses. |
| Compliance with Standards | MCBs follow global safety rules, so they are reliable and work well. |
You can use an mcb for lights, computers, cash registers, and security systems. This keeps your business working without big problems. If something goes wrong, only one area loses power. The rest of the building stays on. This saves you time and money.
Note: Using mcbs in small businesses helps you follow safety rules and protect your business.
You can find an mccb in big commercial buildings. These places use a lot of electricity and need strong protection. An mccb is often the main circuit breaker in malls, hospitals, and tall office buildings. It can handle high current and stops faults fast. You can change its settings to fit your building’s needs.
Here is a table that lists common mccb models and how they are used in large commercial buildings:
| Frame Size | Typical Current Rating | Breaking Capacity | Applications |
|---|---|---|---|
| 630 A | Large commercial buildings | 25 kA to 70 kA | Main distribution, critical feeders |
| 800 A | North America specific | N/A | Main panels, large HVAC systems |
| 1200 A | North America specific | N/A | Large elevators, backup generators |
You should pick the right mccb by checking three things: First, look at the current rating. It should match your building’s needs. Next, check the breaking capacity. It must stop the biggest fault current. Last, make sure the voltage rating fits your system.
Tip: Always choose an mccb that matches your building’s needs. This keeps people and equipment safe.
Factories and plants need even more protection than other places. You use an mccb to protect heavy machines and motors. The mccb can stop big surges and faults before they cause harm. It also helps you watch and control your system, which means less downtime.
In factories, you see mccbs in motor control centers, main switchboards, and backup power systems. These circuit breakers protect against overloads and faults. They also help you save energy and work with smart grid systems.
MCCBs give strong protection for heavy machines.
They have special features for watching and control.
You can use them to make your plant safer and keep it running.
Note: Many new case studies show that using an mccb in factories helps stop accidents and saves money by cutting repairs.
You need to know how much electricity your system uses. First, check the total current your system will need. Pick a circuit breaker that can handle more than this amount. This helps stop overheating and keeps things safe. You also need to look at the interrupting rating. This tells you the biggest fault current the breaker can stop. Always match the voltage rating to your circuit. This helps prevent sparks and other issues.
Here is a table to help you see what to check:
| Selection Factor | Description |
|---|---|
| Rated Current | Should be higher than your system’s maximum steady current. |
| Interrupting Rating | Must meet or exceed the highest possible fault current. |
| Voltage Rating | Needs to match your circuit voltage for safe operation. |
| System Coordination | Make sure breakers work together to isolate faults and provide backup circuit protection. |
| Available Fault Current | Check the utility transformer and wire lengths to know the possible fault current. |
| Branch Loads | Keep steady loads below 80% of the breaker’s rating for safe, continuous use. |
| Conductor Ampacity | Choose a breaker rated 125-175% of the wire’s ampacity to protect cables. |
| Selectivity | Use adjustable thermal and magnetic trip settings to make sure only the closest breaker trips. |
Tip: Always use the right current ratings and trip settings for your system. This gives you full protection and helps you avoid expensive repairs.
You must follow safety rules when picking a circuit breaker. These rules help keep people and equipment safe. In North America, UL 489 is the main safety rule for circuit breakers. This rule needs tough tests and high interrupting ratings. UL 1077 is for extra protection inside equipment. It is not as strict but still helps with safety.
Here is a table of important certifications:
| Certification | Description | Application |
|---|---|---|
| UL 489 | Highest safety standard for circuit breakers, used for main circuit protection. | Main circuit protection against big faults. |
| UL 1077 | For extra protection inside equipment. | Protects small parts or sub-circuits. |
Other rules include NEMA AB-1, IS 13497-1/2, and IEC 60947-1/2. You might also see certificates from KEMA, ASTA, TUV, DEKRA, CCS, and CE. Always check which rules you need to follow in your area.
UL 489 needs breakers to pass hard tests with high fault currents.
UL 1077 is for extra circuit protection and uses easier tests.
IEC and NEMA rules are used around the world for both MCBs and MCCBs.
Note: Always pick a breaker that meets the right safety rule for your country and use. This keeps you safe and helps you follow the law.
Good installation and regular care help your circuit breaker work well. Always turn off the power and lock the circuit before you start. Look for damage, loose wires, or signs of overheating. Clean the breaker with a soft brush or air. Tighten all wires and check the insulation for cracks.
Follow these steps for safe installation and care:
Turn off power and lock the circuit.
Look for damage or loose wires.
Clean dust and dirt from the breaker.
Tighten all wires.
Check insulation for cracks or wear.
Test the breaker by turning it on and off.
Use a test kit to check the trip unit.
Look at arc chutes for damage.
Lubricate moving parts if needed.
Check the trip units for correct settings.
Make sure all labels are easy to read.
Write down all work in a log.
Use infrared tools to find hot spots.
Test insulation resistance with a megger.
Always follow the maker’s instructions.
Tip: Good care helps your circuit breaker last longer and work better. It also keeps your system safe.
You should think about cost and performance when picking between MCB and MCCB. MCBs cost less and are good for small loads. They are easy to put in and take care of. MCCBs cost more but have more features, like adjustable trip settings. These settings let you change the breaker for your system. MCCBs can handle higher currents and are better for big or complex systems.
Here is a table to compare the two:
| Feature/Application | MCB | MCCB |
|---|---|---|
| Current Rating | Lower current applications | Higher current applications |
| Initial Cost | Lower | Higher |
| Maintenance | Easier | More complex |
| Flexibility | Limited | Adjustable for tailored circuit protection |
| Suitability | Small commercial buildings | Large equipment and power systems |
Note: If you need simple protection for small loads, pick an MCB. If you need more protection and flexibility for bigger systems, choose an MCCB with adjustable trip settings.
Check your total load and current ratings before buying.
Make sure the breaker meets all safety rules.
Plan for easy installation and regular care.
Think about cost and if you need adjustable settings.
Ask an expert if you are not sure which breaker to use.
People often want to know about adjustability in MCBs and MCCBs. These devices help keep your electrical system safe. MCCBs let you change trip settings for your needs. You cannot change trip points on MCBs. MCBs always have fixed trip points. MCCBs are better when you need more current and flexible protection.
What is the main difference between MCCB and MCB?
MCCBs work with higher currents and let you change trip settings. MCBs only work with lower currents and have fixed trip points.
When should you choose an MCCB over a standard circuit breaker?
Pick an MCCB if you need more than 125A, want adjustable trip settings, need higher interrupting capacity, or want something strong for industry.
What is the difference between thermal-magnetic and electronic trip units?
Thermal-magnetic trip units use metal strips and magnets for basic protection. Electronic trip units use digital parts for more exact settings and extra features.
Tip: Always check if you need adjustable protection before picking a circuit breaker. This helps keep your system safe and working well.
You may face problems when installing MCBs and MCCBs. You need to work with other workers like plumbers and HVAC teams. Good teamwork helps you finish faster and avoid mistakes. Safety is very important for everyone. You must ground the system right and protect each circuit. This helps stop fires and shocks.
Working with other trades helps you avoid problems.
Safety means you must ground and protect every circuit.
You also need to think about rcd and where to put it. Rcd helps protect people from electric shocks. You put rcd in places like bathrooms, kitchens, and outside. You must check if each rcd works with your circuit breaker. Test the residual current device often to keep things safe.
Note: Always follow the maker’s instructions and local rules when you install MCBs, MCCBs, and rcd.
You must follow standards when using MCBs, MCCBs, and rcd. Standards help keep your system safe and legal. Each device has its own standard. MCBs use IEC 60898-1. MCCBs use IEC 60947-2. In North America, you check UL 489 and UL 1077. Rcd and residual current device use IEC 61008 and 61009.
| Device | Main Standard | Application Area |
|---|---|---|
| MCB | IEC 60898-1 | Residential, commercial |
| MCCB | IEC 60947-2 | Industrial, commercial |
| rcd | IEC 61008, 61009 | Personal protection |
| residual current device | IEC 61008, 61009 | Personal protection |
You must test each rcd and residual current device to make sure they meet the rules. Always check the labels and certificates before you buy. Ask your supplier for proof that the device meets the rules.
Tip: Always use devices that meet the right standards. This helps you avoid trouble and keeps everyone safe.
You now understand how MCB and MCCB are different. MCBs are good for homes and small stores. MCCBs are better for factories and big buildings. Look at this table to help you decide:
| Factor | MCB | MCCB |
|---|---|---|
| Current Rating | Up to 63 Amps | Up to 2,500 Amps |
| Application | Residential, light commercial | Heavy-duty, industrial |
| Price | Lower | Higher |
Always pick a circuit breaker that fits your power needs. Think about where you will use it. If the job is hard or risky, talk to a certified electrician. This keeps your system safe and helps you follow the rules for all circuit breakers.
If you use the wrong breaker, your system may not stay safe. You could face electrical fires or damage to your devices. Always match the breaker to your load and system needs.
Yes, you can reset both. First, fix the problem that caused the trip. Then, switch the breaker back to the ON position. This restores power safely.
You should check your breakers at least once a year. Look for signs of wear, loose wires, or overheating. Regular checks help prevent accidents and keep your system safe.
No, MCBs and MCCBs protect against overloads and short circuits. To protect against electric shock, you need a device called an RCD or GFCI.
You can use an MCCB in a home, but it is not common. MCCBs work best in places with high power needs, like factories or large buildings.
