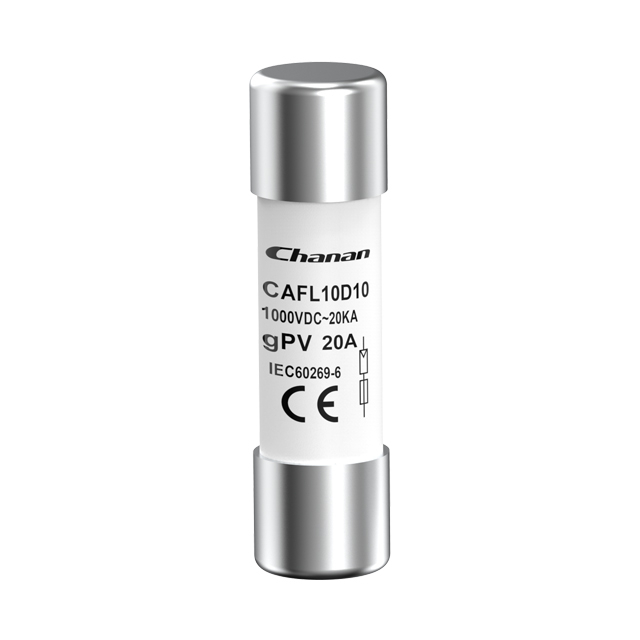

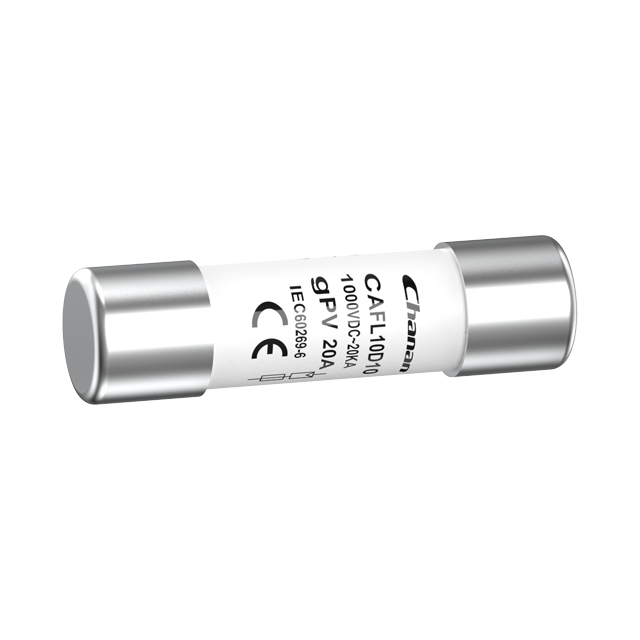

CAFL10D10
Chanan
| Quantity: | |
|---|---|

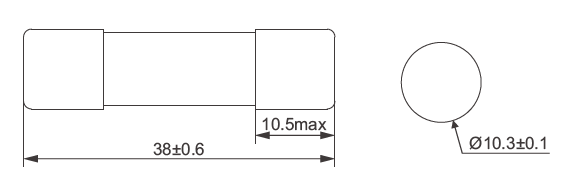

This refers to the physical size of the fuse, indicating that it is 10 millimeters in diameter and 38 millimeters in length. This is a standard size for cylindrical cartridge fuses, allowing for compatibility with various fuse holders and clips designed for this dimension.
The "gPV" classification denotes that the fuse is intended for use in photovoltaic (solar power) applications. The "g" stands for "general purpose," suitable for both overcurrent protection and short-circuit protection, while "PV" refers to its specific suitability for photovoltaic systems.
This term describes the shape of the fuse, indicating that it is a cylindrical cartridge type, which is commonly used in industrial and renewable energy applications.
This voltage rating specifies that the fuse can safely interrupt circuits with voltages up to 1000 VDC. The high voltage rating is essential for photovoltaic systems, which can generate high DC voltages especially when multiple solar panels are connected in series.
The breaking capacity of a gPV fuse is an important specification. It indicates the maximum fault current that the fuse can safely interrupt without damage or risk of arc flash. This fuse provides breaking capacity of 30kA.
This 10x38mm Solar PV Fuse Link is available in multiple ampere ratings from 2A to 32A, which helps match specific requirements in various Photovoltaic (PV) applications.
These fuses are commonly used in combiner boxes and inverters within solar installations to provide protection and ensure the safety and longevity of the system.
| Model | Rated current (A) | Fuse Base Model | I²t (A² Sec) | Power loss(W) | ||
| Pre-arcing | Total clear | 0.8In | 1.0In | |||
| CAFL10D1002 | 2 | CAF1-10(X)PV | 1.2 | 3.3 | 0.68 | 1.36 |
| CAFL10D1003 | 3 | 3.9 | 11 | 0.75 | 1.42 | |
| CAFL10D1004 | 4 | 10 | 27 | 0.94 | 1.58 | |
| CAFL10D1005 | 5 | 18 | 48 | 0.98 | 1.83 | |
| CAFL10D1006 | 6 | 31 | 89 | 1.10 | 1.84 | |
| CAFL10D1008 | 8 | 3.1 | 31 | 1.13 | 1.86 | |
| CAFL10D1010 | 10 | 7.2 | 68 | 1.21 | 2.08 | |
| CAFL10D1012 | 12 | 16 | 136 | 1.38 | 2.62 | |
| CAFL10D1015 | 15 | 24 | 215 | 1.67 | 2.95 | |
| CAFL10D1020 | 20 | 38 | 392 | 1.92 | 3.12 | |
| CAFL10D1025 | 25 | 71 | 508 | 2.10 | 3.46 | |
| CAFL10D1030 | 30 | 102 | 821 | 2.30 | 3.78 | |
| CAFL10D1032 | 32 | 264 | 1020 | 2.60 | 4.20 | |
