CAL3-40S
Chanan
| Quantity: | |
|---|---|

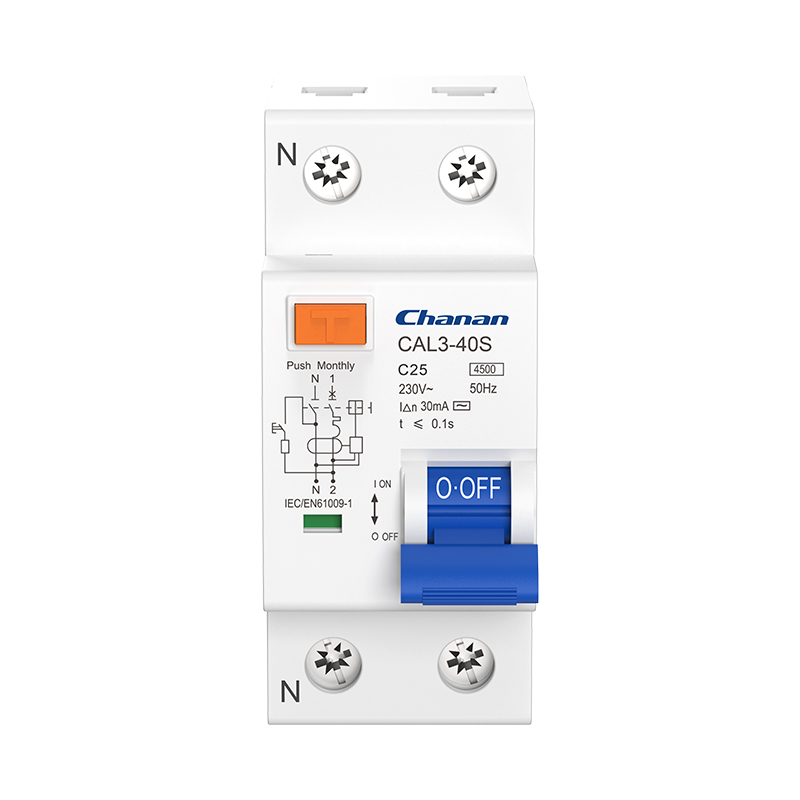

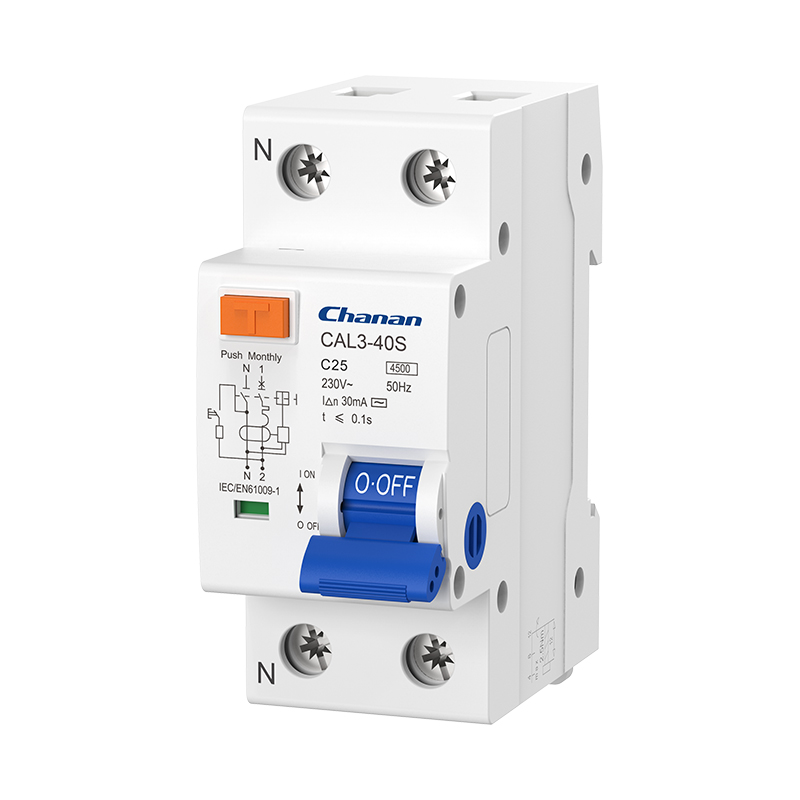

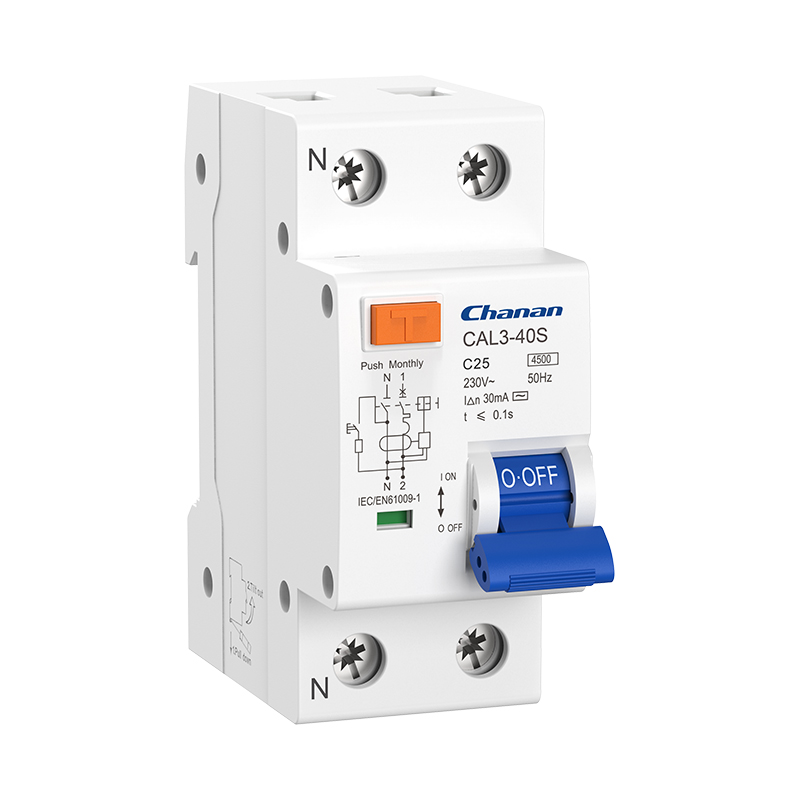

CAL3-40S is primarily used for AC 50Hz or 60Hz electrical systems with a rated voltage of 230V or below and a rated working current of 40A or below. The purpose of this device is to immediately cut off the power supply in the event of electric shock or leakage current exceeding the specified value. Additionally, this RCBO can also provide overload and short-circuit protection, as well as unfrequented changeover of the line under normal conditions.
RCBOs are an essential component in modern electrical installations for providing comprehensive protection against various electrical hazards and equipment damage.
Combination of RCD and MCB: CAL3-40S RCBO combine the functions of residual current devices (RCD) and miniature circuit breakers (MCB), providing protection against earth fault currents, overload, and short-circuit currents.
Compact design: CAL3-40S RCBO is designed to be compact, only two module widths in an electrical panel, making them suitable for various installation environments.
Various tripping characteristics: CAL3-40S RCBO is available with 4.5kA short-circuit breaking capacities and tripping characteristics (B, C) to suit different applications and requirements.
Wide range of sensitivity options: CAL3-40S RCBO come in a variety of sensitivity ratings to provide appropriate protection for different types of electrical installations.
Reduced nuisance tripping: Advanced RCBOs are designed to minimize nuisance tripping caused by transient or temporary electrical conditions, ensuring better system reliability.

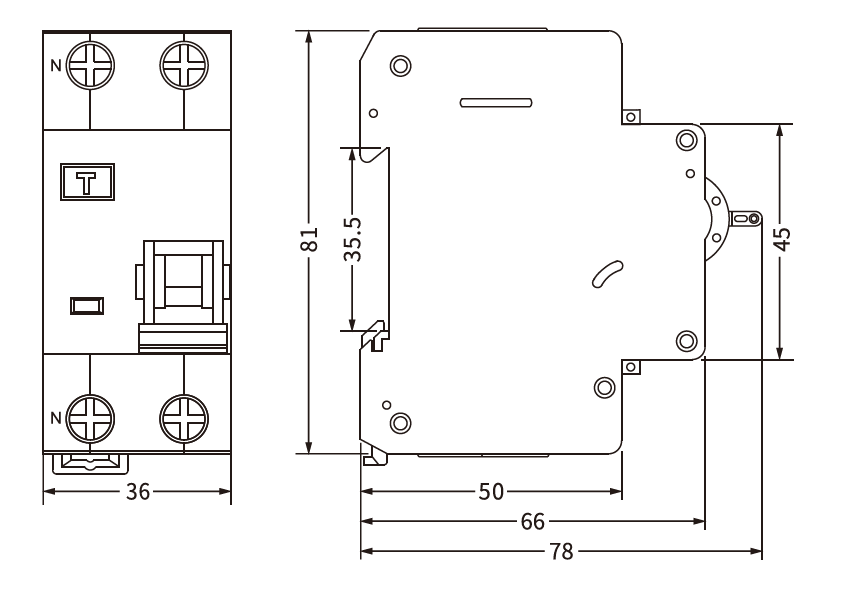

| Standard | IEC/EN61009-1 |
| Protection | Ground fault, Overcurrent and short circuit, Over-voltage(selectable) |
| Type of trip | Ground fault : Electronic |
| Overload and short circuit :Thermo-magnetic | |
| Type of protection (electric leakage) | AC,A |
| No.of poles | 1P+N 2module , N line with disconnected |
| Rated currents In | 6,10,16,20,25,32,40A |
| Rated sensitivity currents I△n | 10,30,100,300mA |
| Residual current off-time under I△n | ≤ 0.1s |
| Rated residual making and breaking capacity(I△m) | 500A(In≤50A), 10In(In>50A) |
| Rated voltage Ue | 230/240V~ |
| Rated frequency | 50/60Hz |
| Rated breaking capacity | 4,500A |
| Rated impulse withstandard voltage(1.5/50) Uimp | 4,000V |
| Dielectric test voltage at Ind. Freq.for 1 min | 2kV |
| Thermal release characteristic | (1.13-1.45) x In |
| Magnetic release characteristic | B:(3-5) x In, C:(5-10) x In |
| Electrical life | 4,000 Cycles |
| Mechanical life | 10,000 Cycles |
| Contact position indicator | Yes |
| Protection degree | IP20 |
| Ambient temperature | -25℃ to +40℃, Max.95% humidity |
| Terminal connection type | Cable/Pin-type busbar |
| Max.terminal size for cable | 25mm² |
| Max.tightening torque | 2.5N.m |
| Installation | Mounting on 35mm DIN rail |
| Connection | From top |
RCBOs (Residual Current Circuit Breakers with Overcurrent Protection) are commonly used in various application scenarios where there is a need to combine protection against overcurrent (overload and short-circuit) and protection against earth leakage currents.
Residential buildings: RCBOs are widely used in residential electrical installations to ensure the safety of occupants and protect household appliances from damage due to electrical faults.
Commercial buildings: In commercial settings such as offices, shops, and restaurants, RCBOs help protect employees, customers, and equipment from electrical hazards.
Industrial environments: RCBOs are essential in industrial applications to safeguard workers and prevent damage to machinery and equipment caused by electrical faults.
Outdoor installations: In outdoor electrical installations, such as lighting systems, RCBOs provide protection against ground faults and overcurrent, ensuring the safety of people and equipment.
