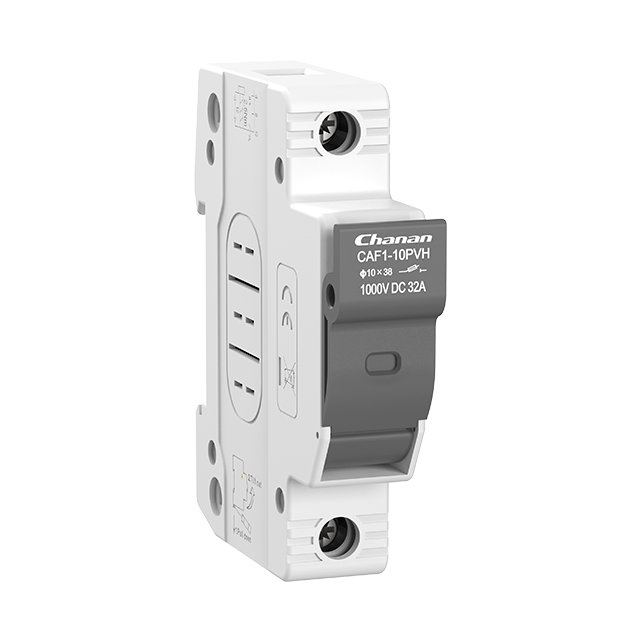

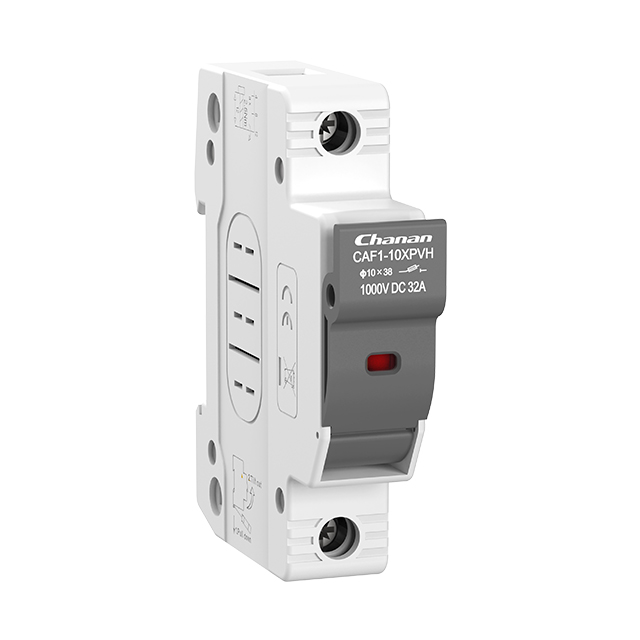

CAF1-10(X)PVH
Chanan
| Quantity: | |
|---|---|
Embrace cutting-edge solar safety with Changan's reliable Solar PV Fuse Holders, expertly accommodating cylindrical fuses of 10 x 38 mm. Designed for a seamless fit, these holders are robustly rated for currents up to 32 Amps and a substantial voltage of 1000 VDC, encompassing the needs of even the most demanding solar energy systems.
Our holders are meticulously crafted for ease of installation on 35mm DIN rails, streamlining the setup process within your photovoltaic array. They stand out as an indispensable safeguard, securing cylindrical fuses that play a pivotal role in the circuit protection of your solar setup.
By ensuring a stable and secure connection, Changan Solar PV Fuse Holders preserve the safety and integrity of your solar installations. They effectively uphold the performance of the protective fuses, offering peace of mind that your system is shielded against electrical irregularities. With Changan's fuse holders, your solar power investments are fortified with durability and excellence in protection.
| Rated operational voltage (Ue) | 1000 VDC |
| Rated operational current (In) | 32A |
Rated insulation voltage (Ui) | 1000V |
| Rated impulse withstand voltage Uimp | 6kV |
| Degree of protection | IP20 |
| Size of Fuse Link | 10×38mm |
| Utilization category | DC-PV0 |
| Mechanical Life | 500 |

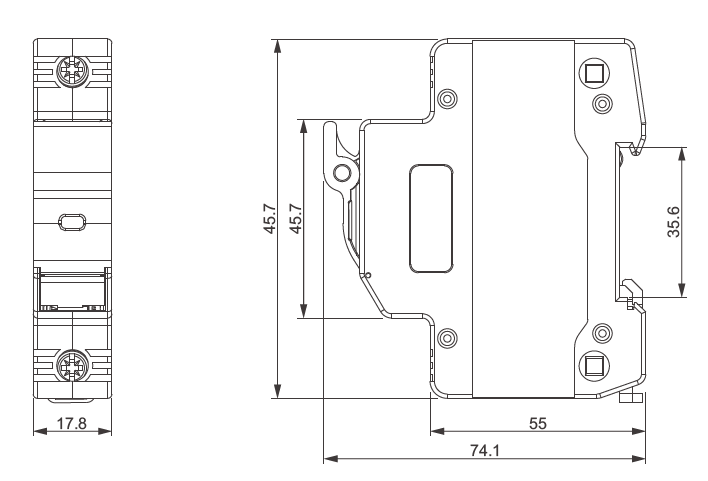

| Product Width | 18mm |
| Tightening Torque | 2.5Nm 14In-lbs |
| Terminal size for Cable | 6mm2 8-18AWG |
| Ambient temperature(<35°C) | -5℃~+40℃ |
| Storage Temperature | -25℃~+70℃ |
| Standard | IEC60269-6, IEC60947-3 |
| Mounting | On DIN rail EN60715(35mm) by means of fast clip device |
