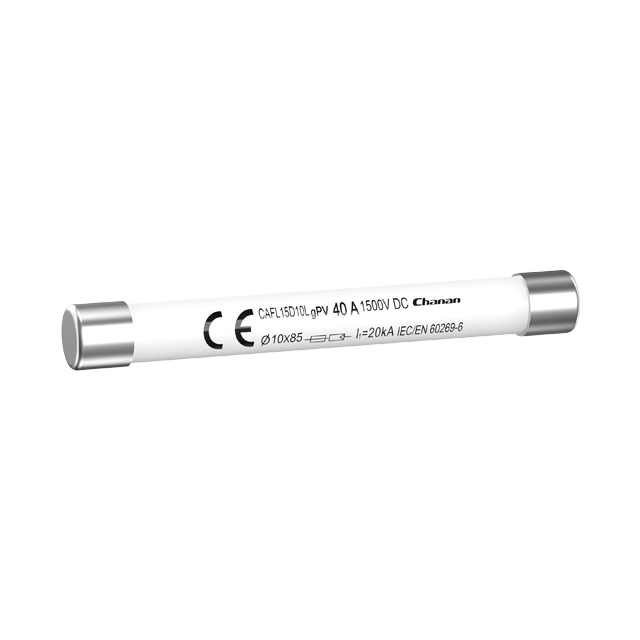

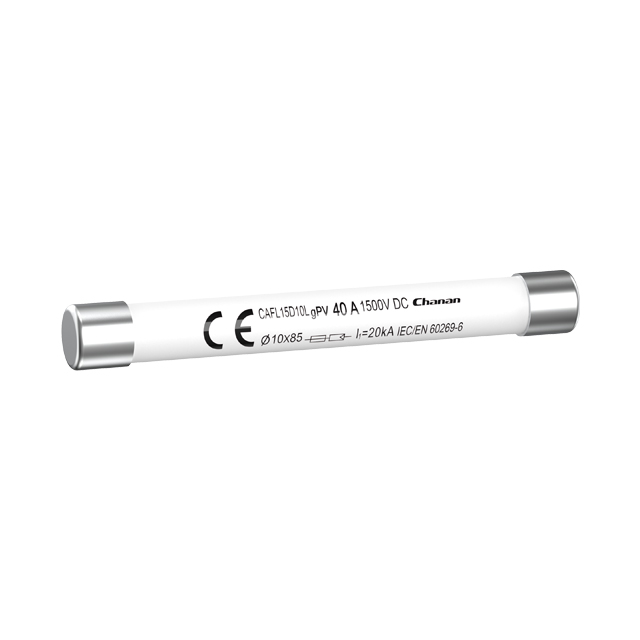

CAFL15D10 10x85mm gPV cylindrical fuses with a voltage rating of 1500VDC and a short-circuit current rating (SCCR) of 50kA are designed for use in photovoltaic systems. These fuses are tailored to protect against overloads and short circuits in solar energy applications, ensuring the safety and reliability of the electrical setup.

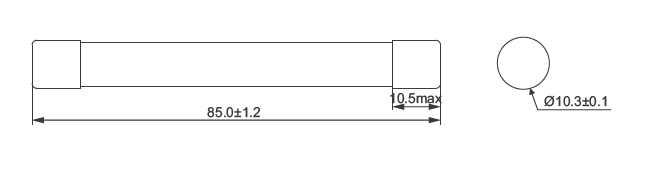

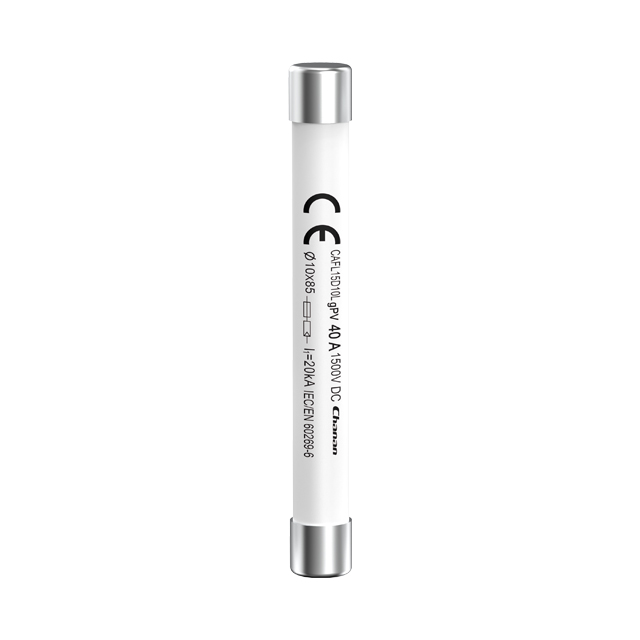

10x85mm: This refers to the physical size of the fuse, indicating that it is 10 millimeters in diameter and 85 millimeters in length.
gPV: The "gPV" classification denotes that the fuse is intended for use in photovoltaic (solar power) applications. The "g" stands for "general purpose," suitable for both overcurrent protection and short-circuit protection, while "PV" refers to its specific suitability for photovoltaic systems.
Cylindrical Fuse: This describes the shape of the fuse, which is cylindrical. This form factor is common for many types of fuses and allows for the fuse to be easily inserted into fuse holders or clips.
1500VDC: This is the voltage rating of the fuse, which means it can safely be used in circuits with a maximum direct current (DC) voltage of 1500 volts. This high voltage rating is typical in PV systems, especially in large-scale solar installations.
Breaking Capacity: The breaking capacity of a gPV fuse is an important specification. It indicates the maximum fault current that the fuse can safely interrupt without damage or risk of arc flash. This fuse provides breaking capacity of 50kA.
Rated Current: This 10x85mm Solar PV Fuse Link is available in multiple ampere ratings from 2A to 35A, which helps match specific requirements in various Photovoltaic (PV) applications.
Such fuses are crucial components in solar energy systems as they provide protection against overcurrent, which can lead to damage to electrical equipment or create fire hazards. They are specifically designed to "blow" or open the circuit when the current flowing through them exceeds their rated capacity, thus preventing excess current from flowing through the system. The specifications ensure that the fuse is suitable for high-voltage applications typical of modern solar installations, and the high interrupting rating ensures that it can handle significant fault conditions.
| Model | Rated current (A) | Fuse Base Model | I²t (A² Sec) | Power loss(W) | ||
| Pre-arcing | Total clear | 0.8In | 1.0In | |||
| CAFL15D10L02 | 2 | CAF1-15(X)PV | 4 | 8 | 1.0 | 2.0 |
| CAFL15D10L03 | 3 | 6 | 11 | 1.1 | 2.1 | |
| CAFL15D10L04 | 4 | 8 | 14 | 1.2 | 2.2 | |
| CAFL15D10L05 | 5 | 11 | 22 | 1.4 | 2.4 | |
| CAFL15D10L06 | 6 | 15 | 30 | 1.5 | 1.6 | |
| CAFL15D1008 | 8 | 9 | 35 | 1.8 | 3.0 | |
| CAFL15D1010 | 10 | 10 | 98 | 2.2 | 3.5 | |
| CAFL15D1012 | 12 | 12 | 120 | 2.5 | 3.8 | |
| CAFL15D1015 | 15 | 14 | 170 | 3.0 | 4.8 | |
| CAFL15D1020 | 20 | 34 | 400 | 3.5 | 6.2 | |
| CAFL15D1025 | 25 | 65 | 550 | 4.0 | 7.2 | |
| CAFL15D1030 | 30 | 95 | 750 | 4.5 | 8.3 | |
| CAFL10D1032 | 32 | 116 | 792 | 4.8 | 8.9 | |
| CAFL15D10L35 | 35 | 143 | 980 | 5.0 | 9.3 | |
