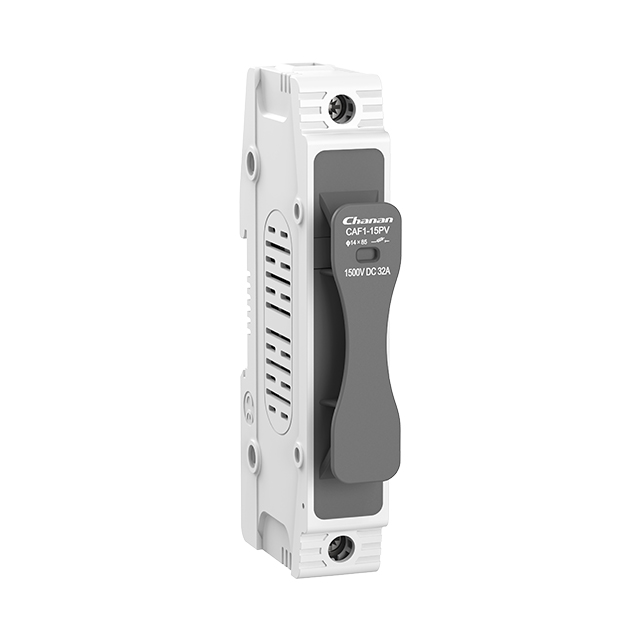

CAF1-15(X)PV
Chanan
| Quantity: | |
|---|---|
Optimize your solar power system with Changan's superior Solar PV Fuse Holders, calibrated to accommodate cylindrical fuses of 10 x 85 mm or 14 x 85 mm dimensions. These precision-engineered holders are rated for currents up to a robust 32 Amps and are capable of handling high voltage applications up to 1500 VDC, catering to the diverse needs of modern photovoltaic systems.
Each fuse holder is designed for straightforward installation on 35mm DIN rail mounts, ensuring secure placement and easy integration into your solar array. Being a critical safety feature, they contribute significantly to the protection of your solar power infrastructure by ensuring that fuses are not only properly seated but also maintain a reliable connection within the protective circuit.
Changan Solar PV Fuse Holders are designed with the utmost attention to maintaining the integrity and safety of your solar power investments. Their robust construction guarantees that fuses will effectively fulfill their protective role, safeguarding against electrical abnormalities and contributing to the longevity and efficiency of solar power installations. Enhance the resilience of your system with these indispensable PV fuse holders.
| Rated operational voltage (Ue) | 1500 VDC |
| Rated operational current (In) | 50A |
Rated insulation voltage (Ui) | 1500V |
| Rated impulse withstand voltage Uimp | 6kV |
| Degree of protection | IP20 |
| Size of Fuse Link | 10×85mm, 14x85mm |
| Utilization category | DC-PV0 |
| Mechanical Life | 500 |

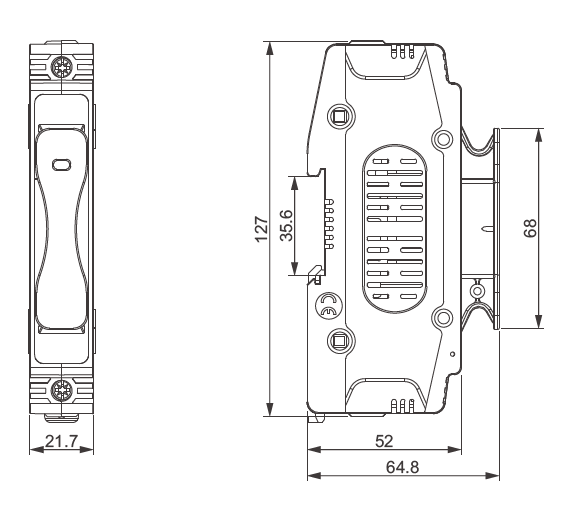

| Product Width | 18mm |
| Tightening Torque | 2.5Nm 14In-lbs |
| Terminal size for Cable | 6mm2 8-18AWG |
| Ambient temperature(<35°C) | -5℃~+40℃ |
| Storage Temperature | -25℃~+70℃ |
| Standard | IEC60269-6, IEC60947-3 |
| Mounting | On DIN rail EN60715(35mm) by means of fast clip device |
