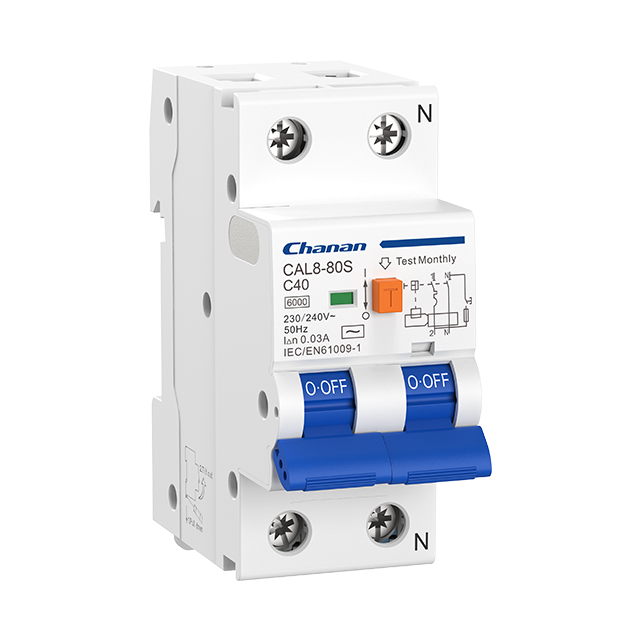

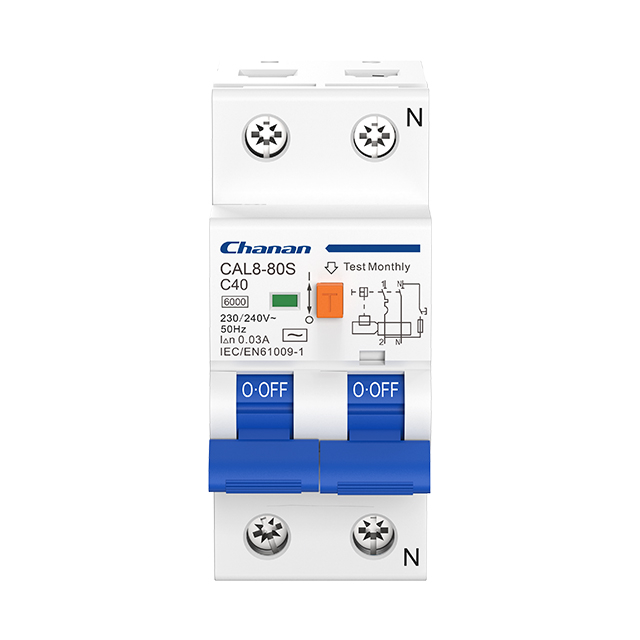

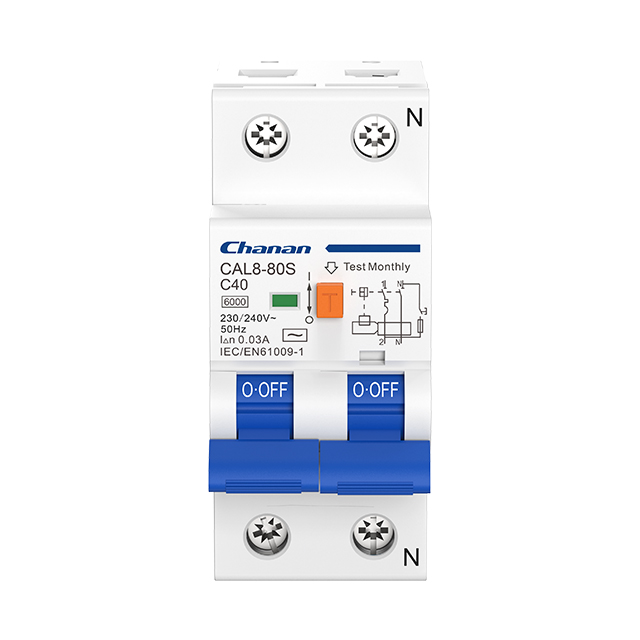

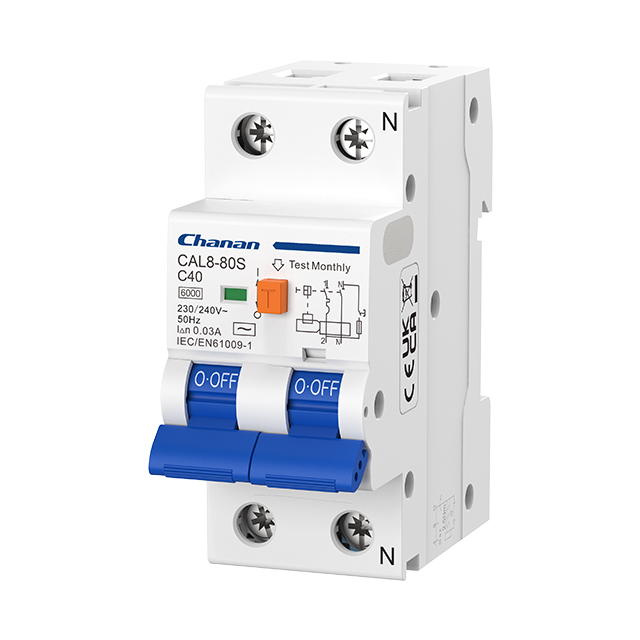

CAL8-80S
Chanan
| Quantity: | |
|---|---|
The CAL8-80S 6kA sets a new standard in electrical circuit management. It is optimized for distribution network circuits operating at AC 50/60Hz, with a rated working voltage up to 230V, and supporting currents as high as 80A. This RCBO (Residual Current Breaker with Overcurrent) is multifaceted, providing indispensable protection against indirect contact for individuals and offering critical leakage protection for various equipment.
Beyond its fundamental protective role against leakage, the CAL8-80S 6kA RCBO is engineered to offer reliable overload and short-circuit protection. This combines two critical safety functions into one device, safeguarding lines and power equipment, ensuring continuous power supply and safety in residential and commercial settings.
This RCBO is not limited to safety; it functions effectively for the less frequent, but necessary tasks like switching circuits and initiating motors under normal operating conditions. This flexibility makes it a versatile component in a wide array of electrical installations, from domestic to industrial scenarios.
In summary, the CAL8-80S 6kA is engineered to be an all-encompassing solution for circuit protection, upholding safety and reliability without compromising on performance.

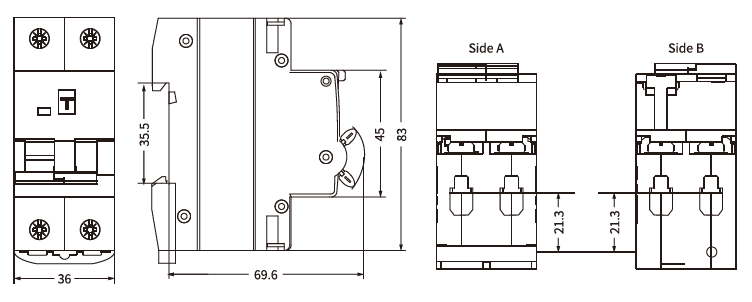

| Standard | IEC/EN61009-1 |
| Protection | Ground fault, Overcurrent and short circuit, Over-voltage (selectable) |
| Type of trip | Ground fault : Electronic |
| Overload and short circuit :Thermo-magnetic | |
| Type of protection (electric leakage) | AC,A |
| No.of poles | 1P+N 2module , N line with disconnected |
| Rated voltage (Ue) | 230/240V~ |
| Rated currents (In) | 6,10,16,20,25,32,40A,63A,80A |
| Rated sensitivity currents (I△n) | 30,100,300mA |
Residual current off-time under I△n | ≤ 0.1s |
| Rated residual making and breaking capacity(I△m) | 500A(In≤50A), 10In(In>50A) |
| Rated frequency | 50/60Hz |
| Rated breaking capacity | 6,000A |
| Energy Limiting Class | 3 |
| Rated impulse withstand voltage(1.2/50) Uimp | 4,000V |
| Dielectric test voltage at Ind. Freq.for 1 min | 2kV |
| Thermal release characteristic | (1.13-1.45) x In |
| Magnetic release characteristic | B:(3-5) x In, C:(5-10) x In |
| Electrical life | 4,000 Cycles |
| Mechanical life | 10,000 Cycles |
| Contact position indicator | Yes |
| Ground fault indicator | Yes |
| Protection degree | IP20 |
| Ambient temperature | -25℃ to +40℃, Max. 95% humidity |
| Terminal connection type | Cable/Pin-type busbar/Fork-type busbar |
| Max. terminal size for cable | 25mm2 |
| Max. tightening torque | 2.5N.m |
| Installation | Mounting on 35mm DIN rail |
| Connection | From top |
