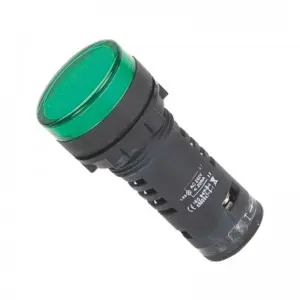

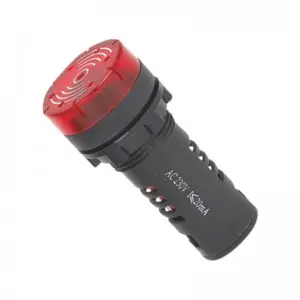

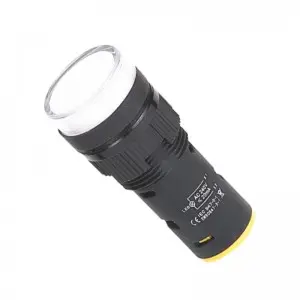

AD22-LED 22mm LED Indicator

AD22 series indicator light are used in the telecommuni- cation and electrical circuit of AC 50Hz or 60Hz, rated working voltage 380V and below DC working voltage 220V or below for indicator signal,accident signal,fault signal and other indicator signals,they compatible with the standard:IEC60947-5-1.

Model:
AD22

Availability:

Quantity:



Inquire

Product Description

Application

AD22 series indicator light are used in the telecommuni- cation and electrical circuit of AC 50Hz or 60Hz, rated working voltage 380V and below DC working voltage 220V or below for indicator signal, accident signal, fault signal and other indicator signals, they meet with the standard: IEC60947-5-1

Structure and Function

AD22 series indicator lights adopt LED lamp with the characteristic of long life and low energy consumption, its concealed terminal is both safe and creditable. The special locking nut structure makes the installation available in the dimension of φ16.5 mm to φ16.5mm.

Man Technical Parameter

Operation temperature: -5℃~+40℃	Power-frequency withstand voltage: 2500V, min
Operation humidity: 45%~85%	Installation degree: III
Pollution degree: 3	Degree of protection: IP65 AC/DC AC/DC AC/DC AC/DC AC/DC AC/DC AC
Rated operation voltage	(Ue) 9V 12V 24V 48V 110V 220V 380V
Rated operation current	(Ie)≤80mA ≤20mA
Base colour	Green Yellow Red Blue White
Electrical Life(h)	≥3000
Brightness	≥60
