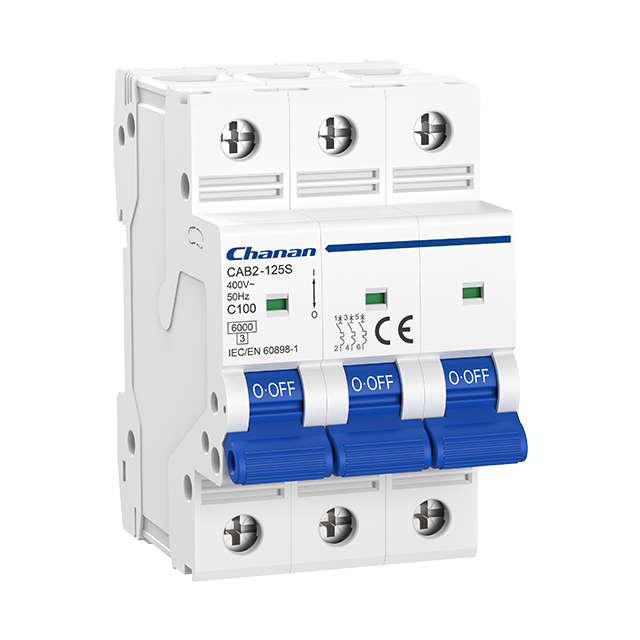

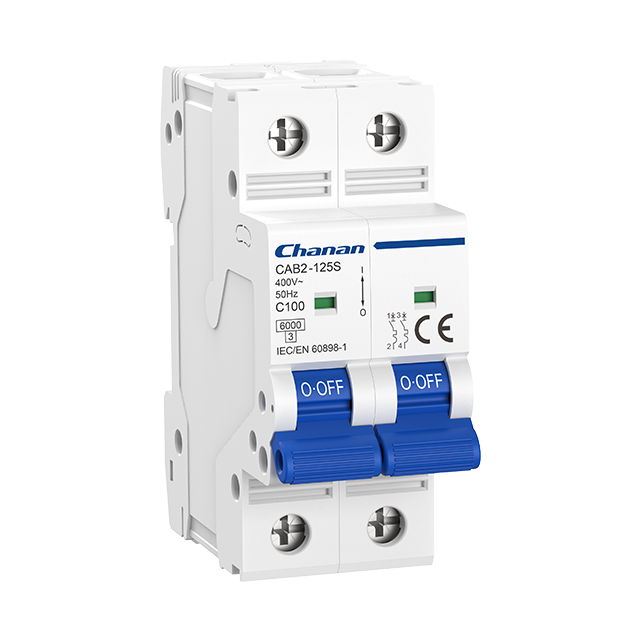

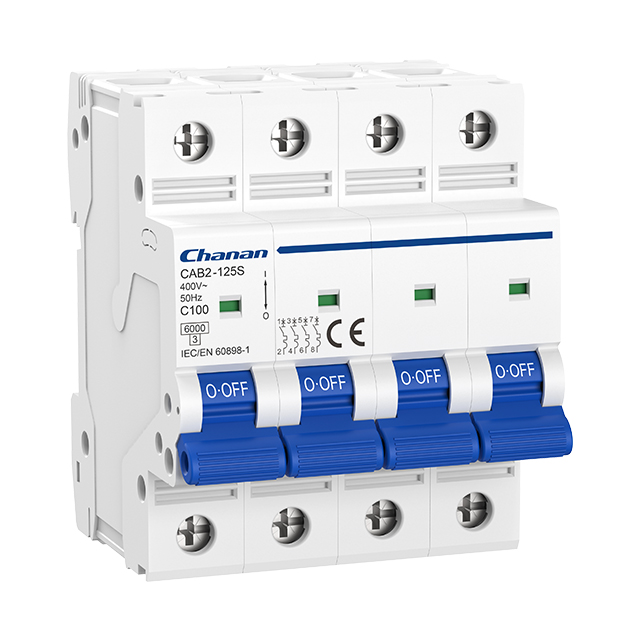

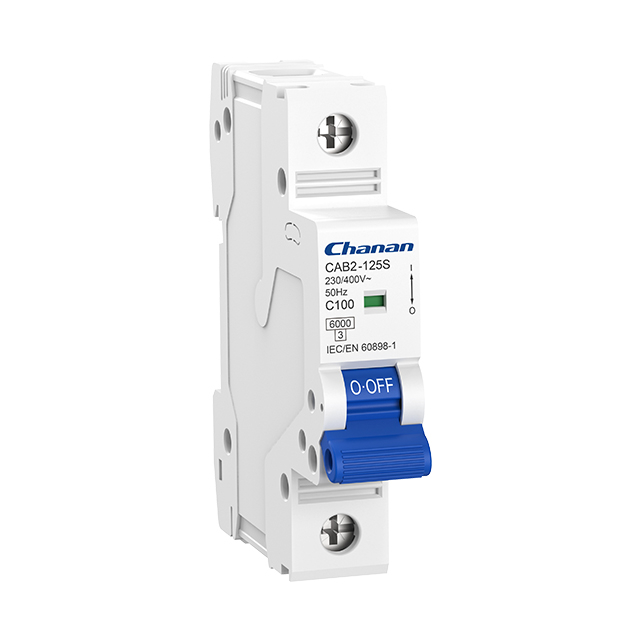

CAB2-125S
Chanan
| Quantity: | |
|---|---|
The CAB2-125S represents an economical solution in the circuit breaker market, courtesy of Changan Electric's commitment to innovation. Featuring an advanced structural design, this MCB not only assures reliable performance but also showcases a high breaking capacity of 6kA coupled with an aesthetically pleasing exterior. It is tailored for AC systems with a frequency of 50Hz or 60Hz, a rated voltage of up to 400V, and a rated operating current of 125A and below, making it ideal for safeguarding lighting, distribution lines, and equipment within office and residential buildings. Furthermore, the CAB2-125S MCB is also well-suited for infrequent switching operations and line conversions.
In conclusion, the CAB2-125S MCB from Changan Electric emerges as an ideal candidate for those seeking an economical yet powerful circuit protection solution. The MCB’s blend of advanced technology, compact design, straightforward installation, and a breadth of current ratings signifies an innovative step forward.
| Standard | IEC/EN60898-1 |
| Protection | Overcurrent and short circuit |
| Type of trip | Thermo-magnetic |
| No.of poles | 1P,2P,3P,4P,1P+N,3P+N |
| Rated current (In) | 63,80,100,125A |
| Rated voltage (Ue) | 240/415V~ |
| Rated frequency | 50/60Hz |
| Rated breaking capacity | 6,000A |
| Rated impulse withstand voltage(1.2/50) Uimp | 4,000V |
| Dielectric test voltage at Ind. Freq. for 1 min | 2kV |
| Thermal release characteristic | (1.13-1.45) x In |
| Magnetic release characteristic | C:(5-10) x In, D:(10-20) x In |
| Electrical life | 4,000 Cycles |
| Mechanical life | 10,000 Cycles |
| Contact position indicator | Yes |
| Protection degree | IP20 |
| Ambient temperature | -5℃ to +40℃ Max. 95%humidity |
| Terminal connection type | Cable/Pin-type busbar |
| Max. terminal size for cable | 50mm2 |
| Max. tightening torque | 3.5N.m |
| Installation | Mounting on 35mm DIN rail |
| Connection | From top and bottom |
Product Uses
Switchgear for industrial and advanced commercial applications.
Use in 240 / 415V AC distribution systems providing overload and short circuit protection.
