CAB2-32N
Chanan
| Quantity: | |
|---|---|

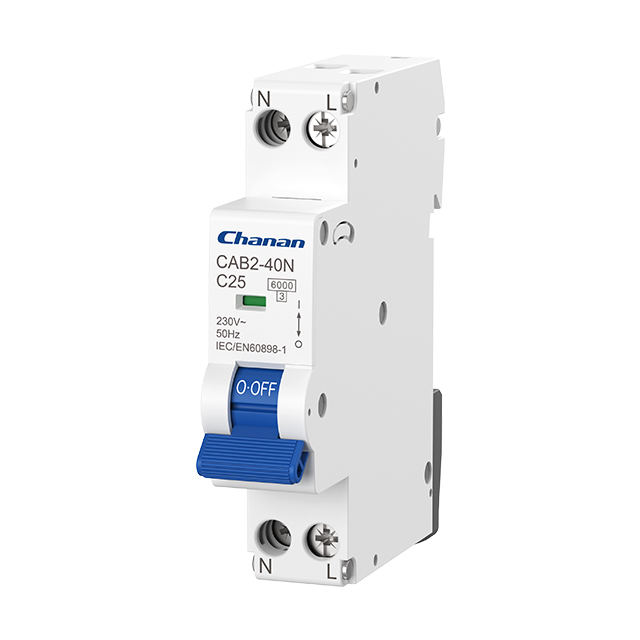

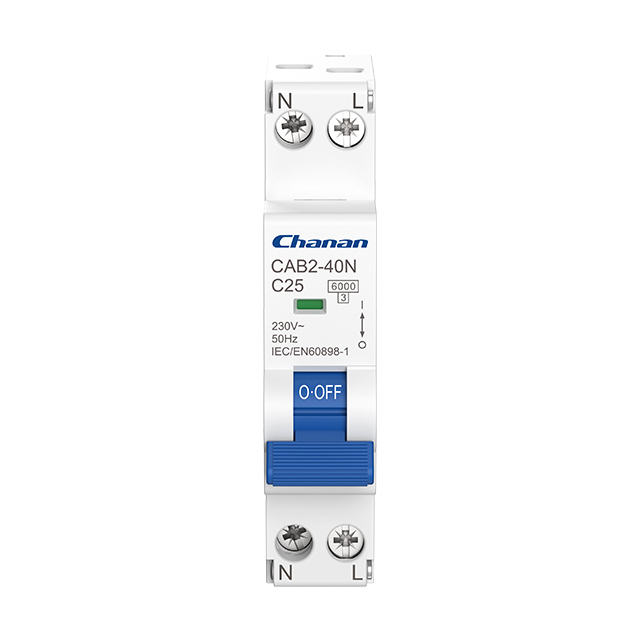

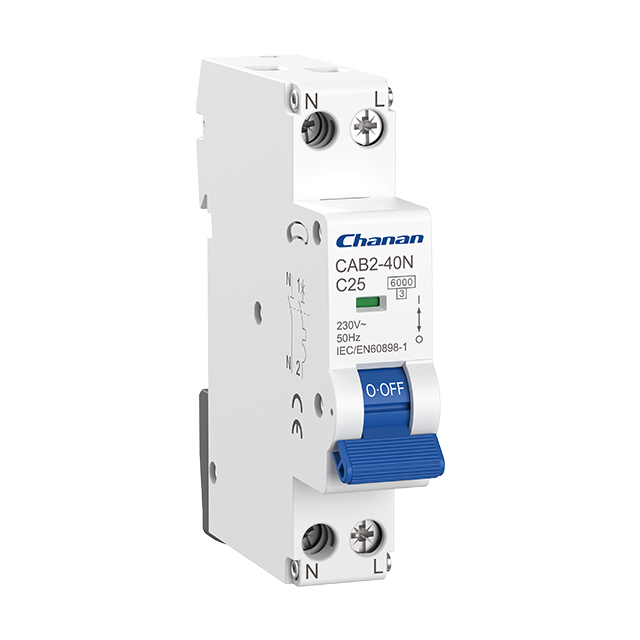

The CAB2-40N DPN miniature circuit breakers are masterfully crafted for single-phase residential circuits operating at AC 50Hz or 60Hz and a rated voltage of 230V. Their main role is to offer unwavering protection from the dangers of overload and short-circuit incidents. This dependable product elevates safety by boasting a high breaking capacity and the ingenious ability to simultaneously disconnect both neutral (zero) and live (phase) wires, thereby averting the perils of incorrect wiring and grounding anomalies. Thus, it establishes itself as the premier choice for distribution protection in residential settings.
The CAB2-40N DPN MCB features a compact form, specifically designed to conserve space within electrical installations. This compactness makes it an exemplary fit for areas where space comes at a premium, without any compromise in functionality.
A notable attribute of these MCBs is their high breaking capacity. This enables them to effectively halt current flow during critical situations like overloads or short circuits, thus preventing potential harm to the electrical infrastructure.
With a reputation for durable and consistent performance, DPN miniature circuit breakers are engineered to operate reliably. They consistently deliver solid protection against electrical faults, ensuring peace of mind.
Designed with user convenience in mind, these MCBs are effortless to install. Their modular nature coupled with fast DIN rail or panel mounting options contribute to a smooth and time-efficient installation process.
With a broad spectrum of current ratings available, DPN miniature circuit breakers enable easy adaptation to match various electrical loads, offering greater flexibility in designing tailored electrical systems.
Some models of DPN miniature circuit breakers come equipped with trip indication capabilities. These indicators serve as immediate visual or audible alerts upon tripping, facilitating swift identification and resolution of electrical faults.
In sum, the CAB2-40N DPN MCB excels in delivering top-tier protection, aligned with compact efficiency, ease of use, and versatile current rating options.

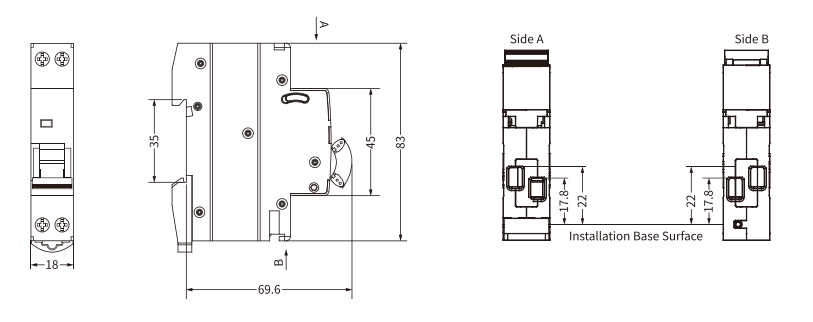

| Standard | IEC/EN60898-1 |
| Protection | Overcurrent and short circuit |
| Type of trip | Thermo-magnetic |
| No.of poles | 1P+N |
| Rated current (In) | 6,10,16,20,25,32,40A |
| Rated voltage (Ue) | 230/240V~ |
| Rated frequency | 50/60Hz |
| Rated breaking capacity | 6,000A |
| Energy Limiting Class | 3 |
| Rated impulse withstand voltage(1.2/50) Uimp | 4,000V |
| Dielectric test voltage at Ind. Freq. for 1 min | 2kV |
| Thermal release characteristic | (1.13-1.45) x In |
| Magnetic release characteristic | B:(3-5) x In, C:(5-10) x In, D:(10-20) x In |
| Electrical life | 4,000 Cycles |
| Mechanical life | 10,000 Cycles |
| Contact position indicator | Yes |
| Protection degree | IP20 |
| Ambient temperature | -5℃ to +40℃ Max. 95%humidity |
| Terminal connection type | Cable/Pin-type busbar |
| Max. terminal size for cable | 16mm2 |
| Max. tightening torque | 2.5N.m |
| Installation | Mounting on 35mm DIN rail |
| Connection | From top and bottom |
1. Residential circuits: DPN miniature circuit breakers are widely used in residential circuits to protect household electrical circuits from overloads and short circuits.
2. Lighting circuit: Choose DPN air switch as the circuit breaker to control the lighting circuit and provide overload and short-circuit protection.
