CAB2-63
Chanan
| Quantity: | |
|---|---|
The CAB2-63 MCB stands as a hallmark of reliability in circuit protection, boasting an impressive 6kA breaking capacity. This miniature circuit breaker not only secures electrical circuits from overloads but is also an eco-conscious choice with its energy-storage operating mechanism. This feature not only extends its service life but guarantees sustainable performance over time. The MCB's exterior and internal parts are crafted from high-quality imported plastics, offering flame-retardant, heat-resistant, and impact-proof characteristics for heightened safety and durability.
The CAB2-63 MCB's 6kA breaking capacity is a testament to its ability to manage high fault currents adeptly, assuring continuous protection for your electrical installations and keeping safety in check without causing unnecessary power disturbances.
This MCB's compact form factor is a significant advantage, especially in space-constrained settings. Its miniature structure facilitates installation in tight spaces, promoting efficient use of panel space without compromising on protection.
When comparing circuit breakers by their breaking capacity, the CAB2-63 MCB represents a cost-conscious choice, balancing affordability with superior circuit protection, offering a value-driven solution for a variety of electrical applications.
Ease of installation is ingrained in the design of the CAB2-63 MCB. Tailored for quick mounting onto DIN rails, this MCB simplifies setup procedures, streamlining the installation process for electricians and maintenance personnel.
MCBs like the CAB2-63 are engineered for endurance. They promise a long service life while consistently guarding against overloads and short circuits, epitomizing reliable performance in circuit management.
In conclusion, the CAB2-63 MCB emerges as a leading choice packed with features such as high breaking capacity, a space-saving design, cost-effective protection, straightforward installation, and reliable longevity.
| Standard | IEC/EN60898-1 |
| Protection | Overcurrent and short circuit |
| Type of trip | Thermo-magnetic |

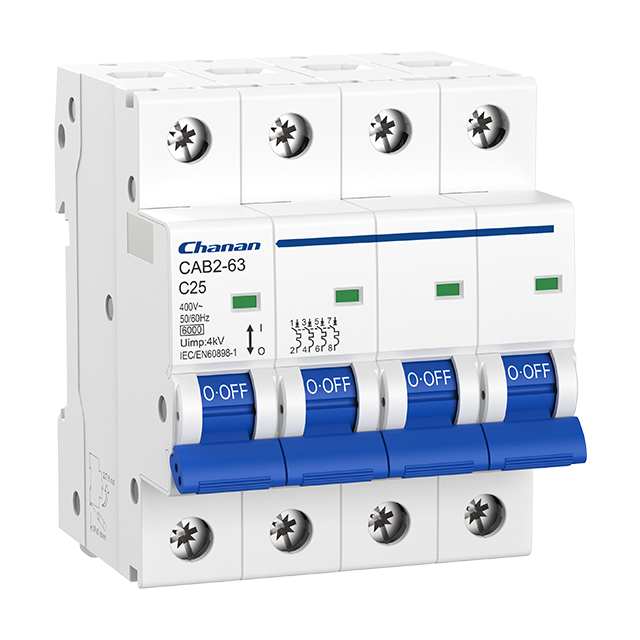

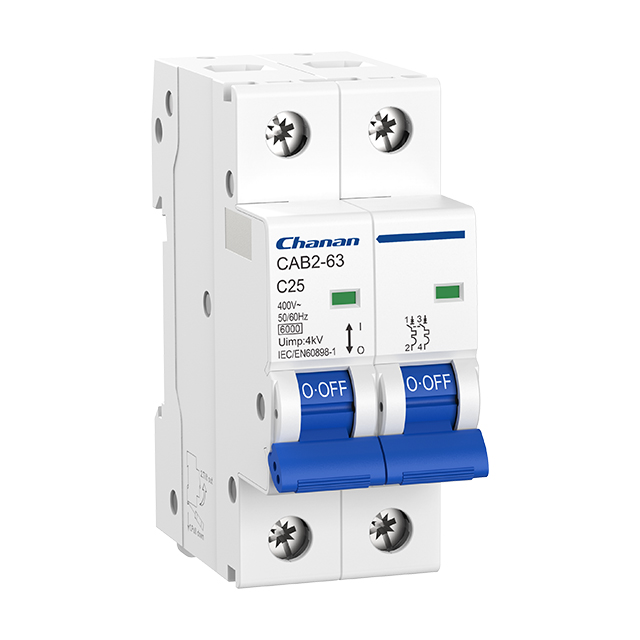

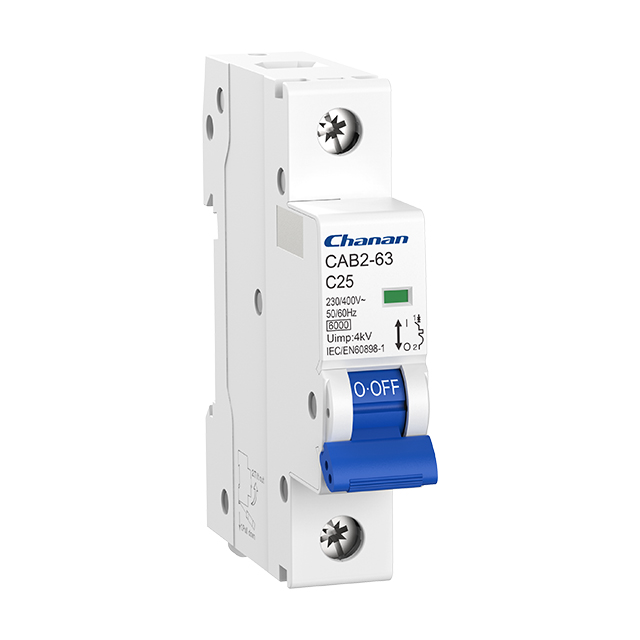

| No.of poles | 1P,2P,3P,4P,1P+N,3P+N |
| Rated currents In | 1,2,3,4,5,6,10,16,20,25,32,40,50,63A |
| Rated voltage Ue | 240/415V~ |
| Rated frequency | 50/60Hz |
| Rated breaking capacity | 4,500A |
| Rated impulse withstand voltage(1.2/50) Uimp | 4,000V |
| Dielectric test voltage at Ind. Freq.for 1 min | 2kV |
| Thermal release characteristic | (1.13-1.45) x In |
| Magnetic release characteristic | B:(3-5) x In, C:(5-10) x In, D:(10-20) x In |
| Electrical life | 4,000 Cycles |
| Mechanical life | 10,000 Cycles |
| Contact position indicator | Yes |
| Protection degree | IP20 |
| Ambient temperature | -5℃ to +40℃Max.95%humidity |
| Terminal connection type | Cable/Pin-type busbar |
| Max.terminal size for cable | 25mm² |
| Max.tightening torque | 2.5N.m |
| Installation | Mounting on 35mm DIN rail |
| Connection | From top and bottom |
Miniature circuit breakers (MCBs) are commonly used in a variety of applications, including:
Residential buildings: MCBs are widely used in homes to protect electrical circuits from overloads and short circuits.
Commercial buildings: MCBs are also commonly used in commercial buildings to protect electrical circuits in offices, shops, and other public spaces.
Industrial settings: MCBs are used in factories and other industrial settings to protect equipment and machinery from electrical faults.
Automotive industry: MCBs are used in vehicles to protect the electrical system from overloads and short circuits.
Overall, MCBs are used in any application where electrical circuits need protection from overloads and short circuits.
FAQ
| 1.What is the standard current rating for MCB CAB2-63? | |
| The CAB2-63 6kA MCB standard current rating includes 1A, 2A, 5A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, and 63A. | |
| 2.What are the main features of CAB2-63 series circuit breakers? | |
| CAB2-63 suitable for overload and short-circuit protection in various buildings with AC 50Hz or 60Hz, rated voltage 400V or below, and rated working current 63A or below. | |
| 3.Where are CAB2-63 series circuit breakers mainly used? | |
| The CAB2-63 Series Circuit Breaker is mainly used for overload and short-circuit protection of lighting, distribution lines, and equipment in office buildings, residential buildings, and other similar structures. It can also be used for infrequent on-off operations and line conversions | |
| 4.What is the guarantee of the quality of CAB2-63 miniature circuit breaker? | |
| CAB2-632 products have obtained the CB and CE certificates issued by BUREAU VERITAS, and the products have been recognized by professional institutions. At the same time, Changan Electric is a professional company with more than 30 years of experience in circuit breaker production. |
