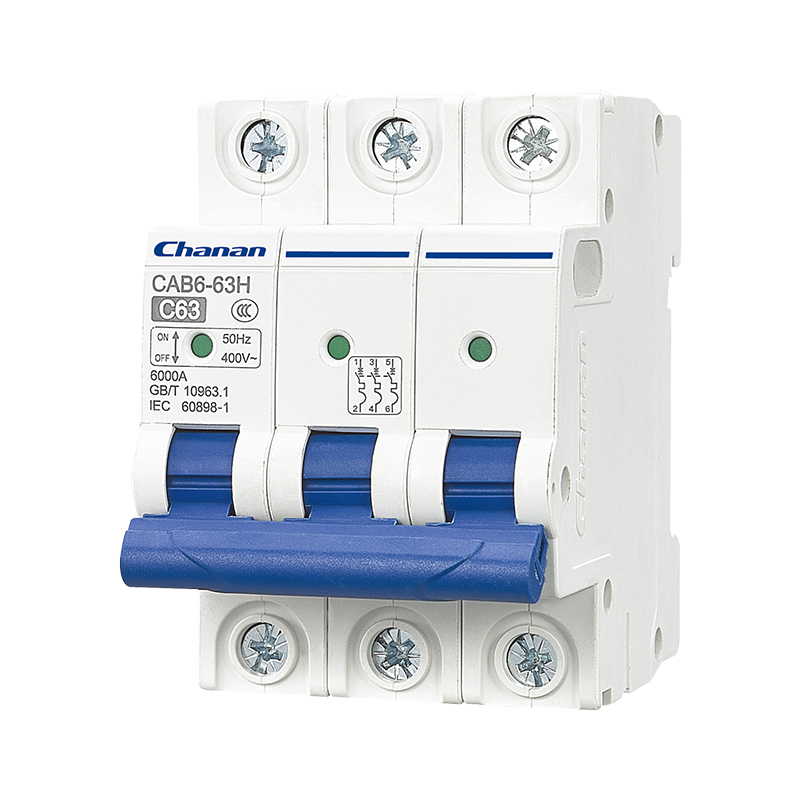

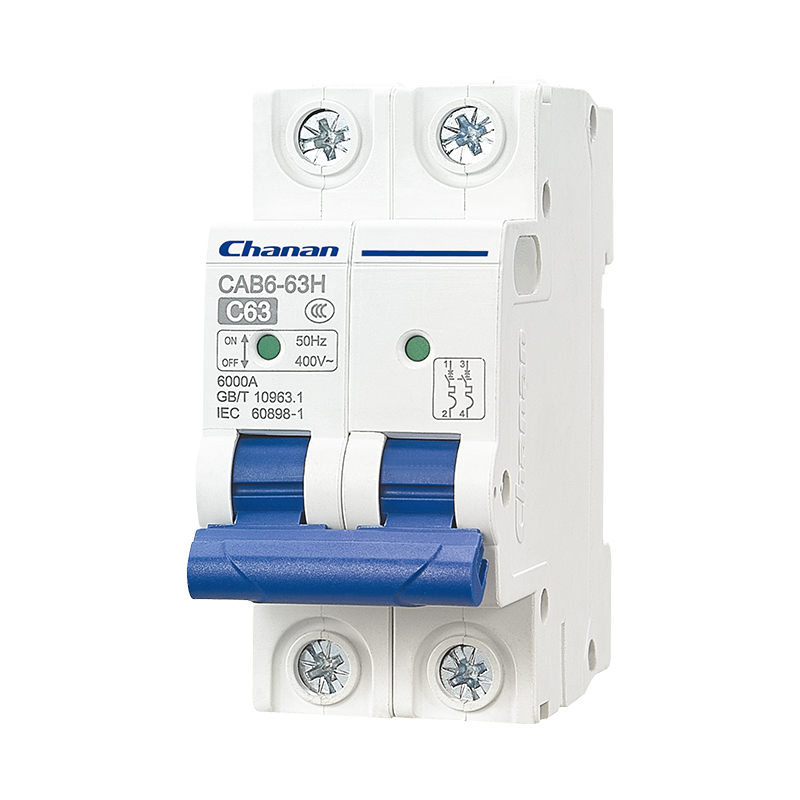

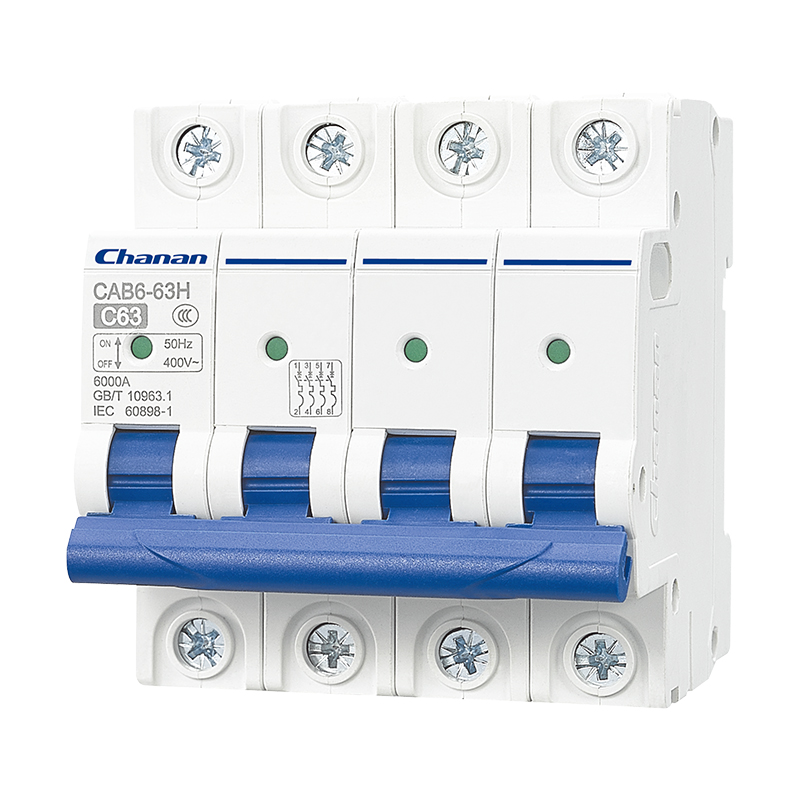

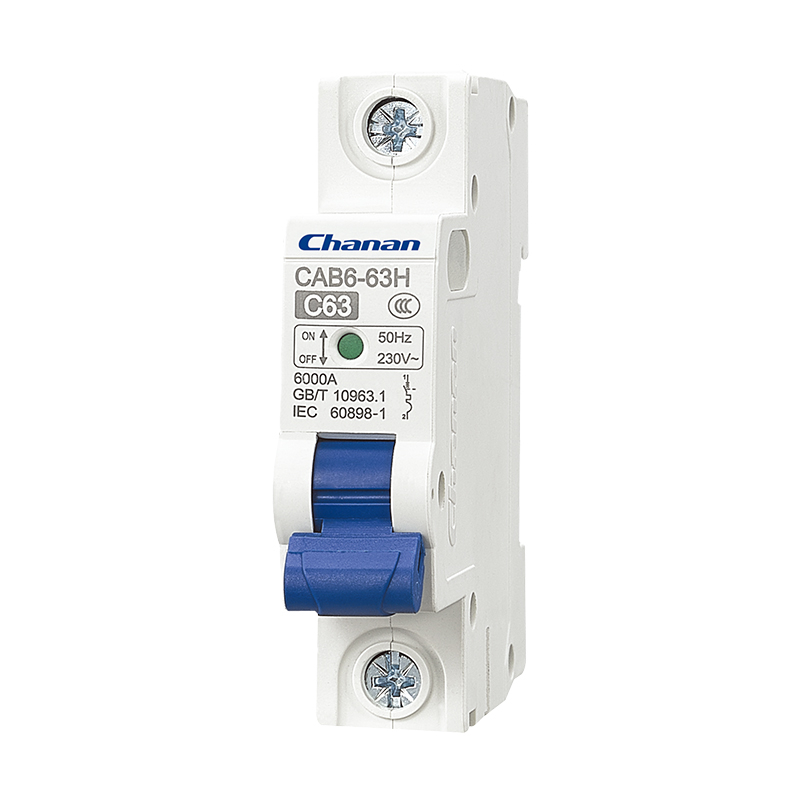

CAB6-63H 6kA MCB Miniature Circuit Breaker

● Standard: IEC60898-1
● Type of trip: Thermo-magnetic
● Rated current: 1~63A
● Rated voltage: 240/415V
● Number of poles: 1P,2P,3P,4P,1P+N,3P+N
● Rated short-circuit breaking capacity: 6kA
● Tripping curve: B, C, D
● Ambient air temperature: -5...+40 ºC
● Connection: From top and bottom
● Certificates: CE, CB

Model:
CAB6-63H
Brand:
Chanan

Availability:

Quantity:



Inquire

Product Description

The CAB6-63 Series MCB: Double Protection for Your Circuitry

Optimized Circuit Control with CAB6-63 Series MCB

The CAB6-63 series MCB is an essential device designed to provide a dual safeguard against the common hazards of overload and short circuit. Ideal for AC circuits operating at 50Hz and compatible with rated voltages of 240/415V alongside a current capacity up to 63A, it serves as an effective solution for protection and occasional switching of electrical circuits.

The Distinctive Benefits of the CAB6-63 Series MCB

Superior Breaking Capacity for Uninterrupted Safety

Featuring a 6kA breaking capacity, the CAB6-63 series MCB is fully equipped to manage demanding fault currents, maintaining operational integrity without accidental trips. This rating is a strong assurance, reflecting the MCB's ability to preserve the safety of the electrical installation under stress.

Designed for Space Efficiency

The compact structure of the CAB6-63 MCB addresses the need for space economy in modern electrical panels. Its diminutive size does not hinder its functionality, making it the perfect fit for installations where panel real estate is at a premium.

Cost-Effectiveness: Quality Protection That Saves Money

When compared to alternative circuit breakers touting similar breaking capabilities, the CAB6-63 series emerges as an economic yet reliable option. It offers a financially viable means to defend your electrical circuits against potential dangers.

Streamlined Installation Process

Ease of installation is a core feature of the CAB6-63 series MCB. Its design is conducive to a swift, no-fuss setup, with the product readily mountable onto DIN rails, which further expedites the installation process.

Dependable Operation Across the Board

The CAB6-63 is synonymous with reliability. It has a prolonged service life and is developed to deliver consistent protection against the perils of both overload and short circuits, contributing to a secure and uninterrupted electrical experience.

Conclusion: The CAB6-63 Series MCB - Efficient, Economical, and Effective

In conclusion, the CAB6-63 series MCB encapsulates the ideal features of an effective protective device: high breaking capacity, compactness, affordability, easy installation, and reliable performance.

Technical Parameters

Standard	IEC/EN60898-1
Protection	Overcurrent and short circuit
Type of trip	Thermo-magnetic
No.of poles	1P,2P,3P,4P,1P+N,3P+N
Rated currents In	1,2,3,4,5,6,10,16,20,25,32,40,50,63A
Rated voltage Ue	240/415V~
Rated frequency	50/60Hz
Rated breaking capacity	6000A
Energy Limiting Class	3
Rated impulse withstandard voltage(1.2/50) Uimp	4,000V
Dielectric test voltage at Ind. Freq.for 1 min	2kV
Thermal release characteristic	(1.13-1.45) x In
Magnetic release characteristic	B:(3-5) x In, C:(5-10) x In, D:(10-20) x In
Electrical life	4,000 Cycles
Mechanical life	10,000 Cycles
Contact position indicator	Yes
Protection degree	IP20
Ambient temperature	-5℃ to +40℃Max.95%humidity
Terminal connection type	Cable/Pin-type busbar
Max.terminal size for cable	25mm²
Max.tightening torque	2.5N.m
Installation	Mounting on 35mm DIN rail
Connection	From top and bottom
