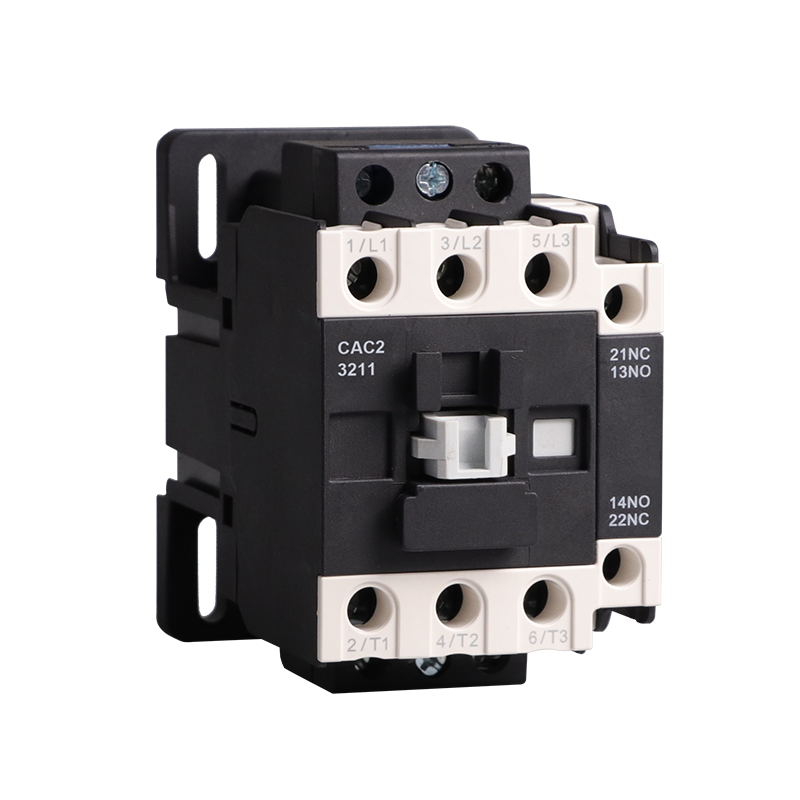

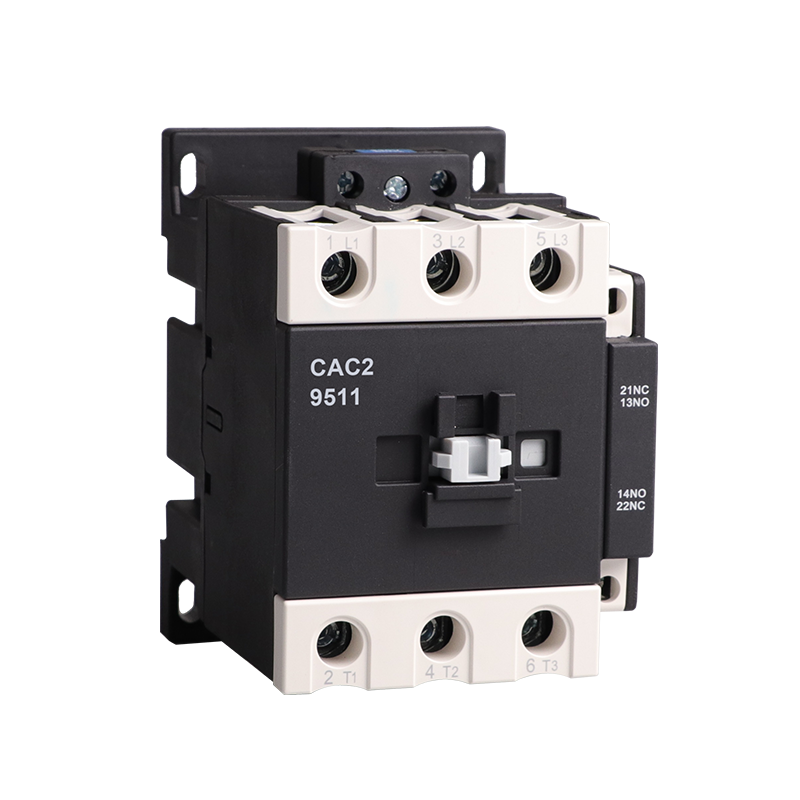

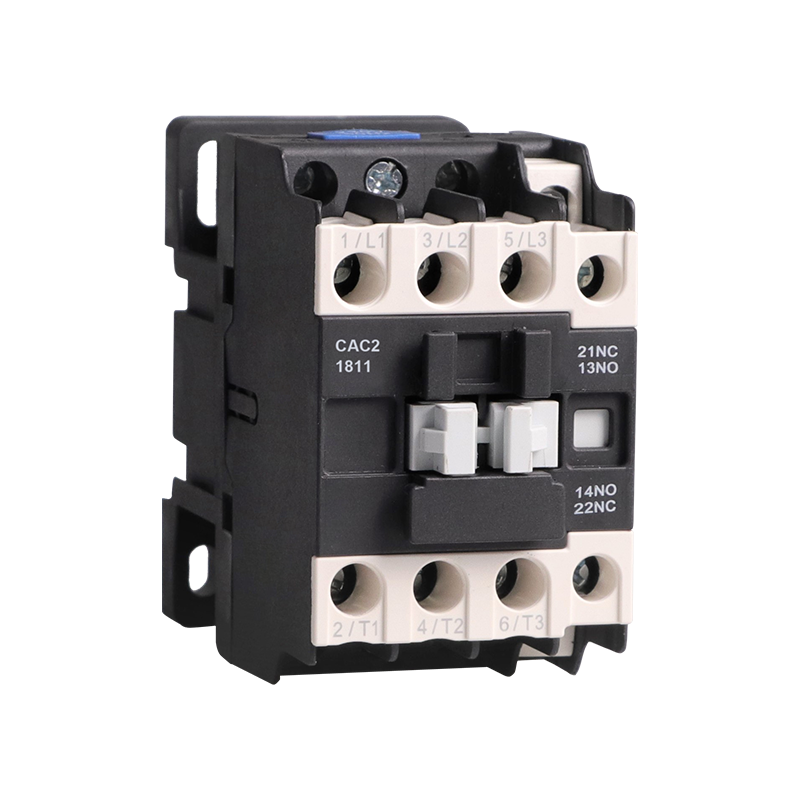

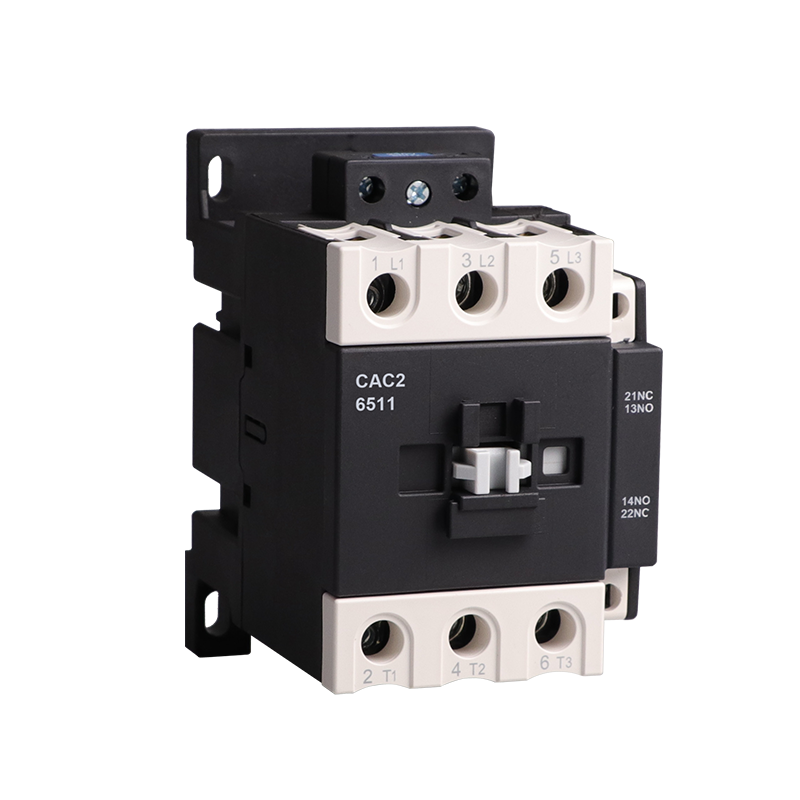

CAC2
| Quantity: | |
|---|---|
Voltage Rating: AC 50/60Hz, 690V (targets keywords: AC 50/60Hz, 690V)
Current Rating: Up to 95A (targets keyword: 95A)
Utilization Category: AC-3, AC-4 (targets keywords: AC-3, AC-4)
Operating Conditions:
Altitude: Up to 2000 meters (targets keyword: Altitude)
Ambient Temperature: -5℃ to +40℃ (targets keyword: Ambient temperature)
Mounting: Category III (targets keyword: Mounting category)
Standards: IEC/EN 60947-4-1, IEC/EN 60947-5-1 (targets keywords: IEC/EN 60947-4-1, IEC/EN 60947-5-1)
Remote control of lighting systems, heating elements, and various industrial equipment.
Motor starting (particularly relevant for frequent starts).
Enhanced Safety: Remote operation minimizes exposure to electrical hazards.
Improved Efficiency: Enables automated control of circuits.
Durable Design: Built to withstand demanding industrial environments.
| Control Coil Voltage (AC Coil Operation) | ||||||||||||||||
Volts (VAC) | 24 | 36 | 42 | 48 | 110 | 127 | 220 | 230 | 240 | 380 | 415 | 440 | 480 | 500 | 600 | |
Code | 50Hz | B5 | C5 | D5 | E5 | F5 | G5 | M5 | P5 | U5 | Q5 | N5 | R5 | - | S5 | Y5 |
60Hz | B6 | - | D6 | E6 | F6 | G6 | M6 | - | U6 | Q6 | - | R6 | T6 | - | - | |
50/60Hz | B7 | - | D7 | E7 | F7 | - | M7 | P7 | - | Q7 | N7 | R7 | - | - | - | |
| Control Coil Voltage (DC Coil Operation) | ||||||||||||||||
| Volts (VDC) | 12 | 24 | 36 | 48 | 110 | 220 | ||||||||||
| Code | JD | BD | CD | ED | FD | MD | ||||||||||
| C | C | 1 | 09 | 11 | Z |
Company code | Contactor | Design sequence NO. | Basic specification, expressed with the rated operational current (380V/400V, AC3) | Number of contacts 10: 3N/O main contacts+1N/O auxiliary contact (9A,12A,18A,25A,32A) 01: 3N/O main contacts+1N/C auxiliary contact (9A,12A,18A,25A,32A) 11: 3N/O main contacts+1N/O and 1N/C auxiliary contact (9A,12A,18A,25A,32A,40A,50A,65A,80A,95A) 04: 4N/O main contacts (9A,12A,25A,40A,50A,65A,80A,95A) 08: 2N/O and 2N/C main contacts (9A,12A,25A,40A,50A,65A,80A,95A) | Z: DC operation Blank: AC operation |
| Standard | IEC/EN60947-4-1 IEC/EN60947-5-1 | ||||||||||
| Model No. | CAC2-09 | CAC2-12 | CAC2-18 | CAC2-25 | CAC2-32 | CAC2-40 | CAC2-50 | CAC2-65 | CAC2-80 | CAC2-95 | |
| Rated Conventional Heating Current | Ith(A) | 20 | 20 | 32 | 40 | 50 | 60 | 80 | 80 | 100 | 125 |
| Rated Voltage Ui(V) | Ui(V) | 690 | |||||||||
| Rated Operation Current Ue=380/415V | AC-3 Ie(A) | 9 | 12 | 18 | 25 | 32 | 40 | 50 | 65 | 80 | 95 |
| AC-4 Ie(A) | 3.5 | 5 | 7.7 | 8.5 | 12 | 18.5 | 24 | 28 | 37 | 44 | |
| Power Controlled 3ph cage Motor AC-3 | 220/240V KW | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 25 |
| 380/415V KW | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | 45 | |
| 660/690V KW | 5.5 | 7.5 | 10 | 15 | 18.5 | 30 | 33 | 37 | 45 | 45 | |
| AC-3 | 1000 | 1000 | 1000 | 1000 | 800 | 800 | 600 | 600 | 600 | 600 | |
| Electrical life (x103 operations) | AC-4 | 200 | 200 | 200 | 200 | 200 | 150 | 150 | 150 | 100 | 100 |
| Mechanical life (x106 operations) | 10 | 10 | 10 | 10 | 8 | 8 | 8 | 8 | 6 | 6 | |
| Matched Fuse | Size | RT16-00 | |||||||||
| A | 20 | 20 | 32 | 40 | 50 | 63 | 80 | 80 | 100 | 125 | |
| Main circuit | 3P or 4P | ||||||||||
| Auxiliary circuit Cat.:AC-15, Ue=415V Ie=0.95A Ith=10A | 1NO / 1NC / 1NO + 1NC | ||||||||||
| Model | Cabling cross section (Cu) | screw size | Tightening torque (N.m) | |||
| Number of piece | Flexible cable with cold-pressed socket (mm2) | Flexible cable without cold-pressed socket (mm2) | Inflexible cable (mm2) | |||
| CAC2-09 | 1~2 | 2.5 | 4 | 4 | M3.5 | 0.8 |
| CAC2-12 | 1~2 | 2.5 | 4 | 4 | M3.5 | 0.8 |
| CAC2-18 | 1~2 | 4 | 6 | 6 | M3.5 | 0.8 |
| CAC2-25 | 1 | 4 | 10 | 6 | M4 | 1.2 |
| 2 | 4 | 6 | 6 | M4 | 1.2 | |
| CAC2-32 | 1 | 4 | 10 | 6 | M4 | 1.2 |
| 2 | 4 | 6 | 6 | M4 | 1.2 | |
| CAC2-40 | 1 | 10 | 16 | 10 | M4 | 3.5 |
| 2 | 10 | 10 | 10 | M8 | 3.5 | |
| CAC2-50 | 1 | 16 | 25 | 25 | M8 | 3.5 |
| 2 | 16 | 16 | - | M8 | 3.5 | |
| CAC2-65 | 1 | 16 | 25 | 25 | M8 | 3.5 |
| 2 | 16 | 16 | - | M8 | 3.5 | |
| CAC2-80 | 1 | 50 | 50 | 50 | M8 | 3.5 |
| 2 | 25 | 35 | - | M10 | 4 | |
| CAC2-95 | 1 | 50 | 50 | 50 | M10 | 4 |
| 2 | 25 | 35 | - | M10 | 4 | |
Overall and Installation Dimension(mm)
