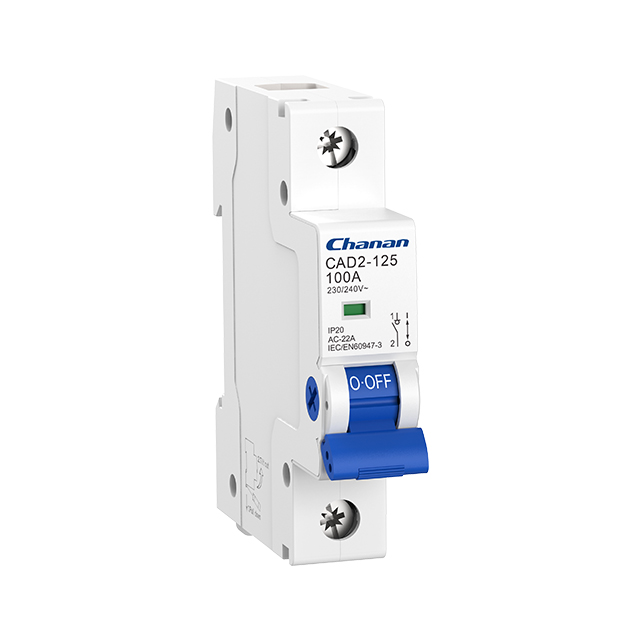

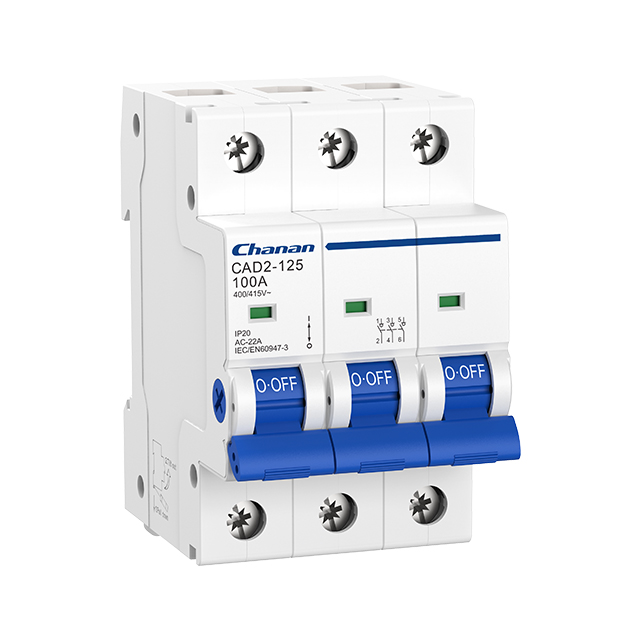

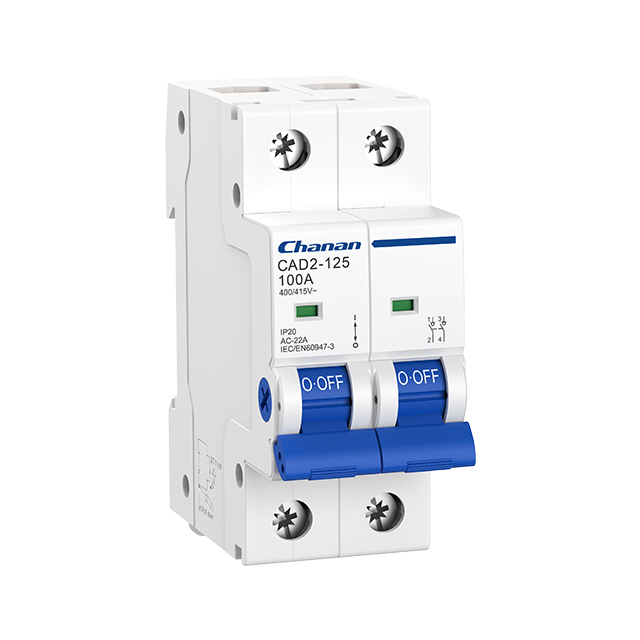

CAD2-125
Chanan
| Quantity: | |
|---|---|
EKD3-125 isolator switch or switch-disconnector is designed to effectively isolate the power supply, ensuring the safety of workers during maintenance and repair of electrical equipment. It is commonly used in industries where frequent inspection and maintenance of electrical equipment is required, including industrial production, construction, and medical equipment.
Used as main switch for household and similar installation.
Suitable for switching lightly inductive loads.
Shell flame retardant material.
Clear contact position indication in red/green.

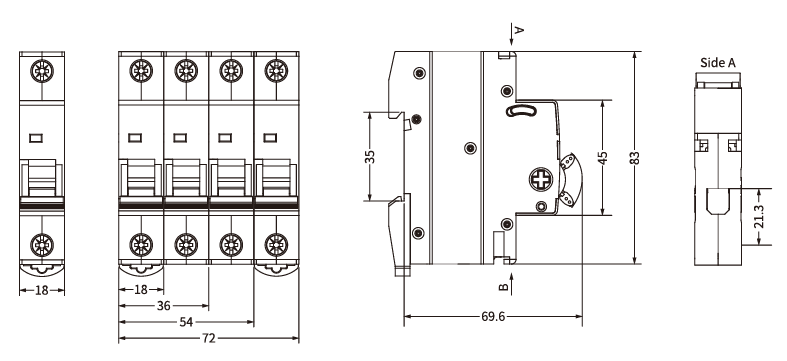

| Standard | IEC/EN60947-3 |
| No.of poles | 1P,2P,3P,4P |
| Rated currents (In) | 25, 32, 40, 50, 63, 80, 100, 125 |
| Rated voltage (Ue) | 240/415V~ |
| Rated frequency | 50/60Hz |
| Rated insulation voltage Ui | 500V |
| Utilization category | AC-22A |
| Rated short-time withstand current Icw (kA) | 12Ie, t=1s |
| Rated short-time making capacity Icm (kA) | 20Ie, t=0.1s |
| Rated making & breaking capacity | 3Ie, 1.05Ue, CosΦ=0.65 |
| Rated impulse withstand voltage Uimp | 6,000V |
| Conventional enclosed thermal current lthe | 125A |
| Electrical life | 2,000 Cycles |
| Mechanical life | 10,000 Cycles |
| Contact position indicator | Yes |
| Protection degree | IP20 |
| Ambient temperature | -5℃ to +40℃ Max.95%humidity |
| Terminal connection type | Cable/Pin-type busbar |
| Max. terminal size for cable | 50mm2 |
| Max. tightening torque | 3.5N.m |
| Installation | Mounting on 35mm DIN rail |
| Connection | From top and bottom |
