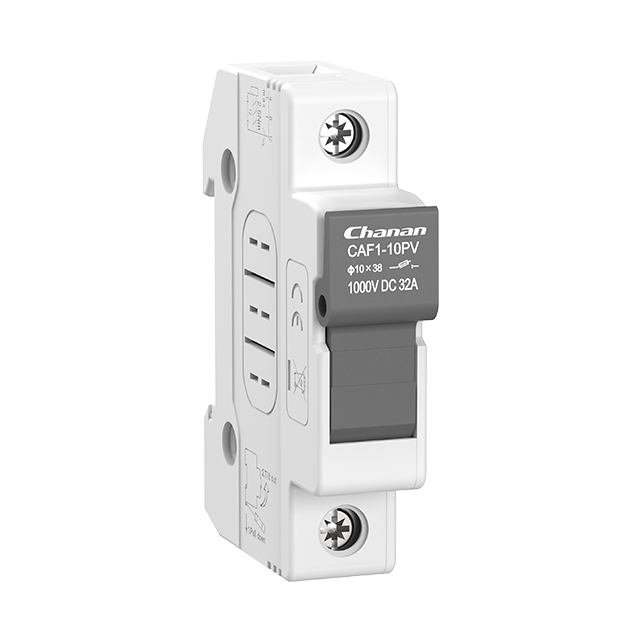

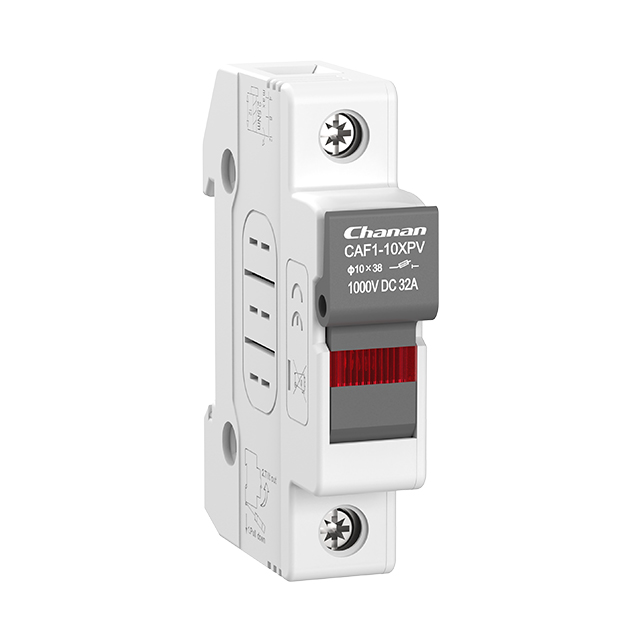

CAF1-10(X)PV
Chanan
| Quantity: | |
|---|---|
Introducing the advanced Changan Solar PV Fuse Holders, precision-engineered to safeguard your solar energy systems. Our holders are specifically designed to accommodate cylindrical fuses measuring 10 x 38 mm, ensuring a perfect fit for industry-standard components.
With a robust current capacity of up to 32 Amps and a high voltage rating of 1000 VDC, these fuse holders are a vital part of any solar power setup. They are not only built for endurance but are also remarkably easy to install thanks to their compatibility with 35mm DIN rail mounts.
Our cylindrical PV fuse holders serve as the cornerstone of protection for photovoltaic systems, securing fuses firmly to maintain uninterrupted performance and preventing overcurrent mishaps. An essential safety measure, these fuse holders are meticulously crafted to keep solar installations operational, safeguard equipment, and protect investments from potential electrical issues.
| Rated operational voltage (Ue) | 1000 VDC |
| Rated operational current (In) | 32A |
Rated insulation voltage (Ui) | 1000V |
| Rated impulse withstand voltage Uimp | 6kV |
| Degree of protection | IP20 |
| Size of Fuse Link | 10×38mm |
| Utilization category | DC-PV0 |
| Mechanical Life | 500 |

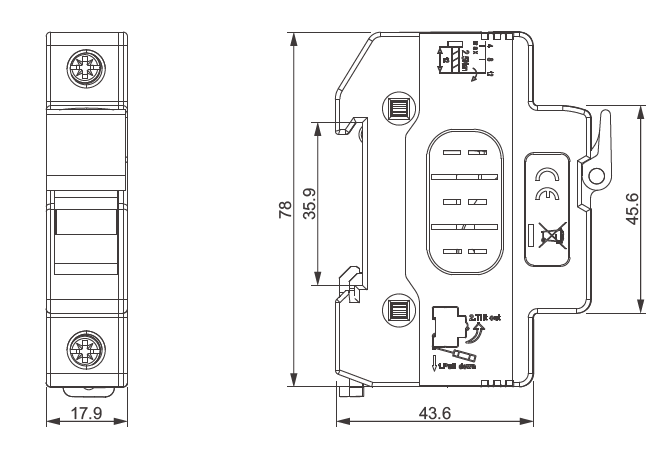

| Product Width | 18mm |
| Tightening Torque | 2.5Nm 14In-lbs |
| Terminal size for Cable | 6mm2 8-18AWG |
| Ambient temperature(<35°C) | -5℃~+40℃ |
| Storage Temperature | -25℃~+70℃ |
| Standard | IEC60269-6, IEC60947-3 |
| Mounting | On DIN rail EN60715(35mm) by means of fast clip device |
