CAL17-40
Chanan
| Quantity: | |
|---|---|

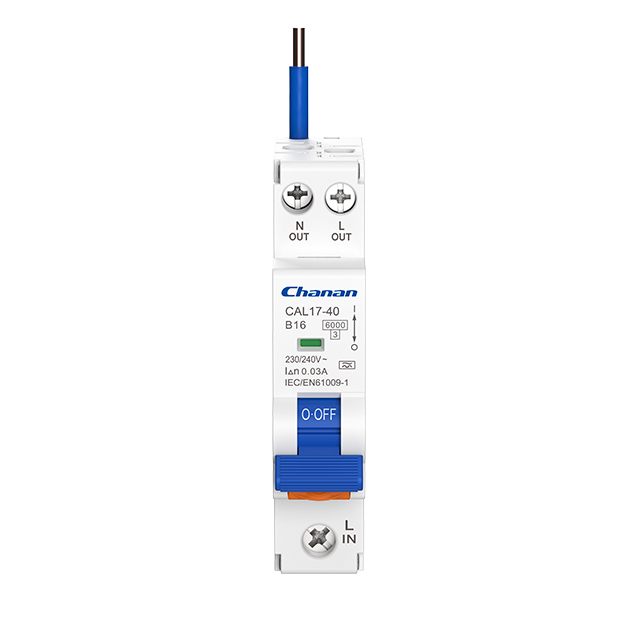

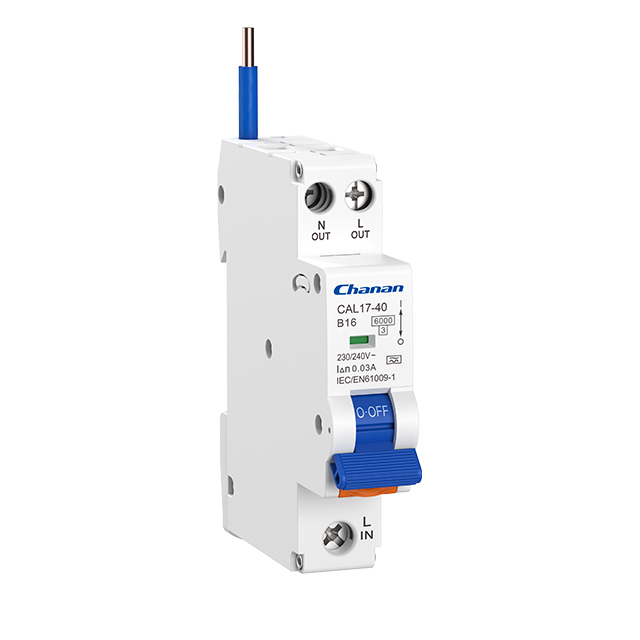

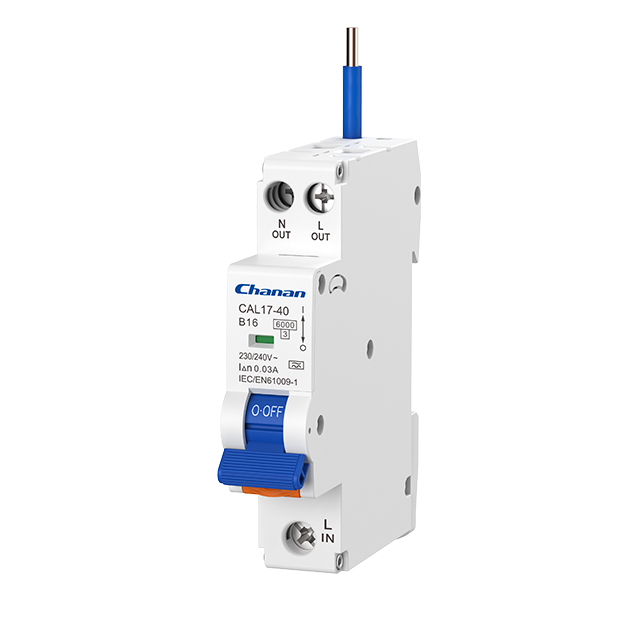

The CAL17-40 stands as a formidable 1P+N DPN RCBO that consolidates overcurrent protection within a single module. It is meticulously designed to shield electrical circuits from an array of potential dangers, including short-circuit currents, overload conditions, and earth fault currents. With a keen eye on user safety, it provides comprehensive defense against both indirect and direct contacts. Available in choices of 10mA, 30mA, 100mA, and 300mA sensitivity, the CAL17-40 RCBO caters to varied protection needs and is thoughtfully equipped with a supply neutral wire.
The inclusion of a supply neutral wire in the CAL17-40 RCBO is not a trivial feature; it significantly bolsters the device’s capability to mitigate earth faults and prevent overcurrent incidents, expanding the umbrella of protection it provides.
Safety is paramount, and the integration of neutral and earth lines in this RCBO ensures that electrical installations are guarded against both earth leakage and overcurrents, enhancing the safety net for any environment it serves.
Tailored for Specialized Environments
Certain environments and applications, including medical facilities and locations outfitted with sensitive electronic devices, necessitate specialized protection. The CAL17-40 RCBO, with its versatile sensitivity options and functional earth wire, is the ideal choice for such demands, ensuring that the requirements for safety and functional integrity are seamlessly met.
Compliance with industry regulations is non-negotiable, particularly in sectors or regions where a functional earth wire is mandated. The CAL17-40 RCBO addresses these regulatory needs effortlessly, combining compliance with unmatched protection capabilities.
Echoing the user-friendly nature of standard 1P+N RCBOs, the CAL17-40 variation with neutral wires maintains simplicity in its installation process. This design choice saves precious time and reduces the complexity involved during setup, leading to an overall efficient installation experience.
To sum up, the CAL17-40 RCBO stands out with its capacity for superior electrical safety, its suitability for specific applications requiring a functional earth, and its ease of installation.

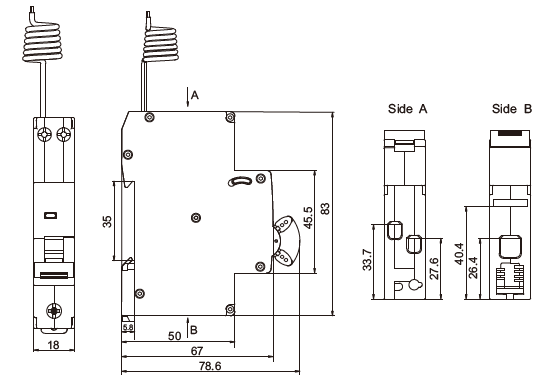

| Standard | IEC/EN61009-1 |
| Protection | Ground fault, Overcurrent and short circuit, Over-voltage(selectable) |
| Type of trip | Ground fault : Electronic |
| Overload and short circuit :Thermo-magnetic | |
| Type of protection (electric leakage) | AC,A |
| No.of poles | 1P+N 1module , N line with disconnected |
| Rated voltage (Ue) | 230/240V~ |
| Rated currents (In) | 6,10,16,20,25,32,40A |
| Rated sensitivity currents (I△n) | 10,30,100,300mA |
| Residual current off-time under (I△n) | ≤ 0.1s |
| Rated residual making and breaking capacity (I△m) | 500A(In≤50A), 10In(In>50A) |
| Rated frequency | 50/60Hz |
| Rated breaking capacity | 6,000A |
| Energy Limiting Class | 3 |
| Rated impulse withstand voltage(1.2/50) (Uimp) | 4,000V |
| Dielectric test voltage at Ind. Freq.for 1 min | 2kV |
| Thermal release characteristic | (1.13-1.45) x In |
| Magnetic release characteristic | B:(3-5) x In, C:(5-10) x In |
| Electrical life | 4,000 Cycles |
| Mechanical life | 10,000 Cycles |
| Contact position indicator | Yes |
| Protection degree | IP20 |
| Ambient temperature | -25℃ to +40℃, Max. 95% humidity |
| Terminal connection type | Cable/Pin-type busbar |
| Max.terminal size for cable | 16mm2 |
| Max.tightening torque | 2.5N.m |
| Installation | Mounting on 35mm DIN rail |
| Connection | From bottom |
