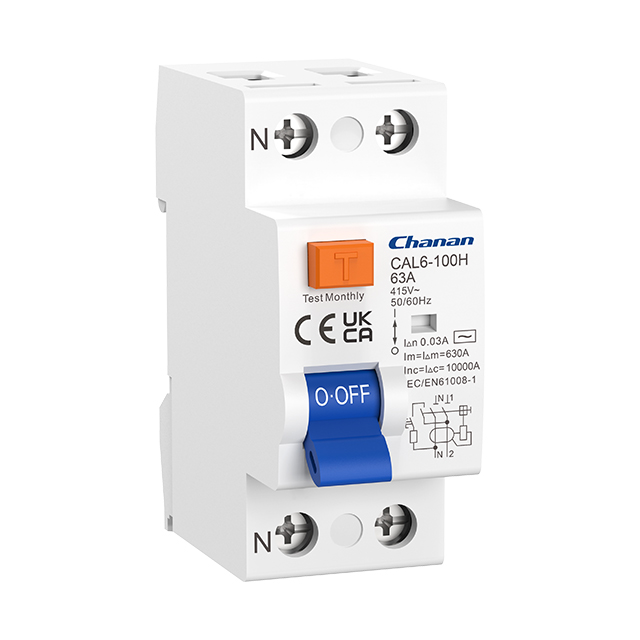

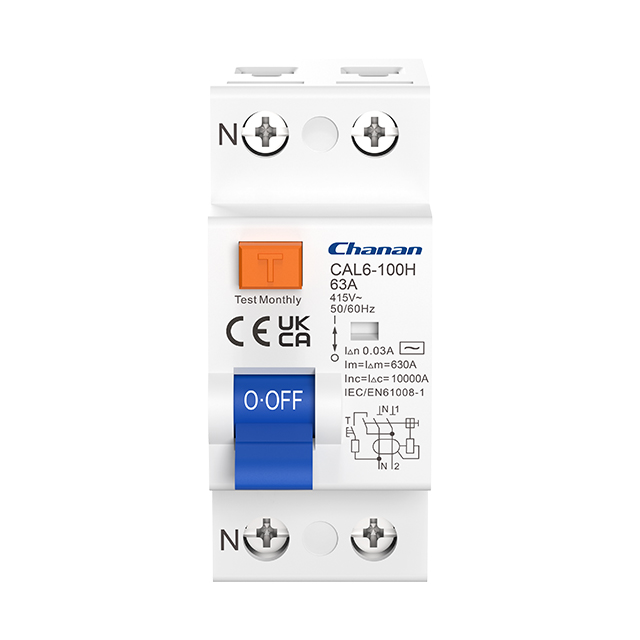

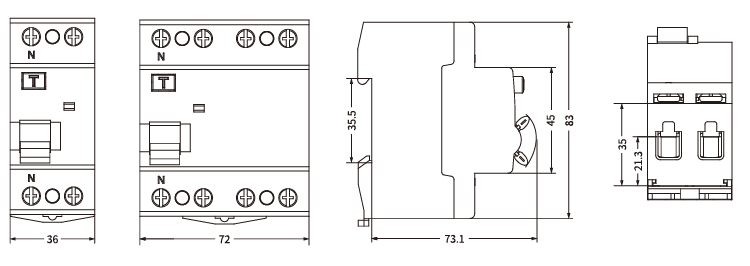

CAL6-100H 10kA Residual Current Circuit Breaker suitable for earth leakage protection of 25-100A AC distribution system, large terminal port 35mm², both sides can use Pin-type or Fork-type busbar.
Additionally, CAL6-100H RCCB can help protect against fire hazards caused by earth leakage currents. By disconnecting the circuit when leakage is detected, they prevent the potential for overheating and fire that can occur due to faulty wiring or malfunctioning electrical appliances
| Standard | IEC/EN60898-1 |
| Protection | Ground fault |
| Type of trip | Electro-magnetic |
| Type of protection (electric leakage) | AC,A,G,S |
| No.of poles | 2P(1P+N), 4P(3P+N), N pole on left |
| Rated currents In | 16,25,32,40,63,80,100A |
| Rated sensitivity currents I△n | 30,100,300mA |
| Residual current off-time under I△n | ≤ 0.1s |
| Rated residual making and breaking capacity(I△m) | 500A(In≤50A), 10In(In>50A) |
| Rated voltage Ue | 1P+N: 230/240V~, 3P+N:400/415V~ |
| Rated frequency | 50/60Hz |
| Rated breaking capacity | 10,000A |
| Rated conditional short-circuit current Inc : (A) | 10,000A |
| Rated impulse withstandard voltage(1.5/50) Uimp | 4,000V |
| Dielectric test voltage at Ind. Freq.for 1 min | 2kV |
| Electrical life | 2,000 Cycles |
| Mechanical life | 4,000 Cycles |
| Contact position indicator | Yes |
| Ground fault indicator | Yes |
| Protection degree | IP20 |
| Ambient temperature | -25℃ to +40℃Max.95%humidity |
| Terminal connection type | Cable/Pin-type busbar/U-type busbar |
| Max.terminal size for cable | 35mm² |
| Max.tightening torque | 2.5N.m |
| Installation | Mounting on 35mm DIN rail |
| Connection | From top and bottom |
