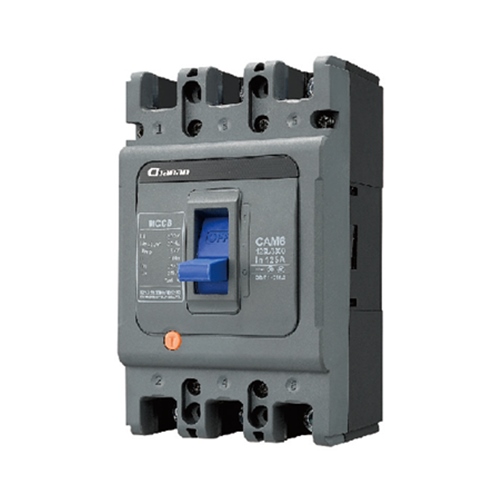

The CAM6 circuit breaker safeguards electrical systems in various applications:

Power Distribution: Ensures reliable power delivery in diverse industrial settings.

Motor Protection: Manages infrequent motor starts within compatible circuits (rated for AC 50Hz, 400V maximum voltage, and up to 800A current).

Comprehensive Protection:

Overload: Protects against excessive currents exceeding the rated capacity.

Short Circuit: Interrupts dangerous high-current faults rapidly.

Under-Voltage: Disconnects circuits when voltage drops below safe operational levels.

Compliant Design:

Meets IEC 60947-2 standards for exceptional quality and safety.

Type Designation

Note:

1) No code for power distribution protection: circuit breaker for motor protection is indicated by 2
2) No code for three-pole products.
3) No code for handle directly operated; the motor operation is indicated by p; the rotation of the handle operation is indicated by Z.
4) See main technical parameters.

Normal Working Condition

Robust Design: Withstands normal working conditions including:

Altitude: Up to 2000 meters.

Temperature: -5°C to +40°C (marine: +45°C).

Humidity: Up to 90% at 20°C, measures against condensation advised.

Resilient:

Environmental factors: Handles salt mist, oil mist, fungus, and mild radiation.

Vibration: Functions reliably on ships and during minor earthquakes (level 4).

Clean environment: Suitable for areas free from explosive hazards, excessive dust, and corrosive elements.

Installation:

Inclination: Up to ±22.5°.

Pollution degree: 3.

Categories: Main circuit: II, Auxiliary/control circuits: II.

Variety of Options:

Poles:

1. According to product pole number: classify into 2 poles, 3 poles and 4 poles. The forms of neutral poles (N poles) in 4-pole products are as follows:

◇ N pole is not installed with overcurrent trip element, and the N pole is always connected,and it will not open and close with other three poles.

◇ N pole is not installed with overcurrent trip element, and N pole is open and close with other three poles (N pole is open first and then close.)

◇ N-pole installed over-current tripping components are open and close with other three poles.

◇ N-pole installed overcurrent release components will not open and close together with other three poles.

Breaking Capacity: Standard (L), Higher (M), High (H), and Ultra High (R).

Operation: Manual (handle), Rotary handle, or Electric.

Wiring: Front, Rear, or Plug-in.

Mounting: Fixed (vertical/horizontal).

Applications: Power distribution and motor protection.

Overcurrent Release: Electromagnetic or Thermal magnetic.

Accessories: Internal (shunt release, under-voltage release, contacts) and External (operating mechanisms, interlocks, terminals).

This circuit breaker caters to diverse industrial applications in wordwide, ensuring dependable performance in challenging environments.
