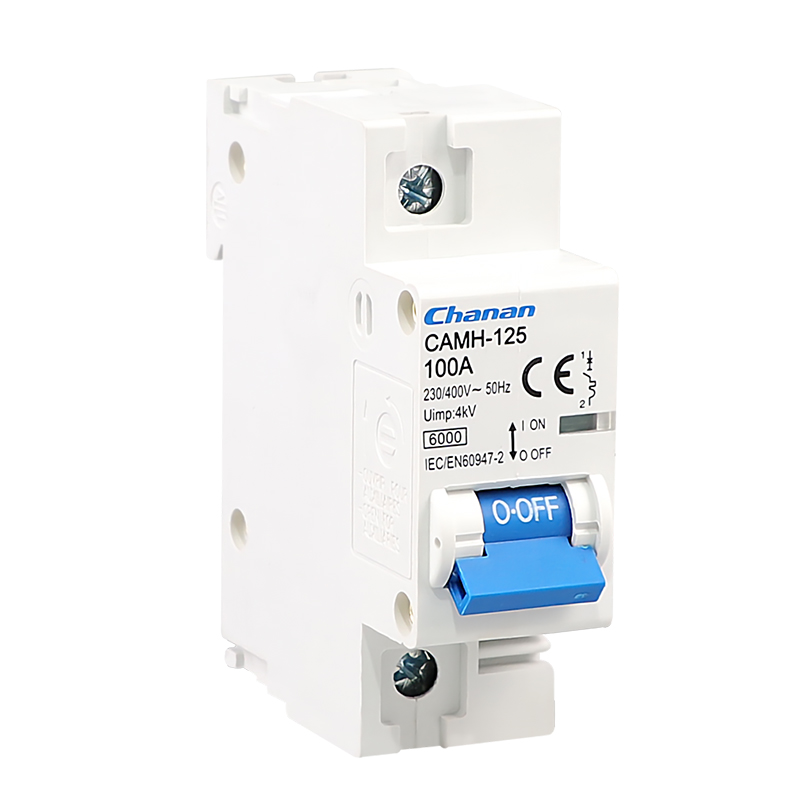

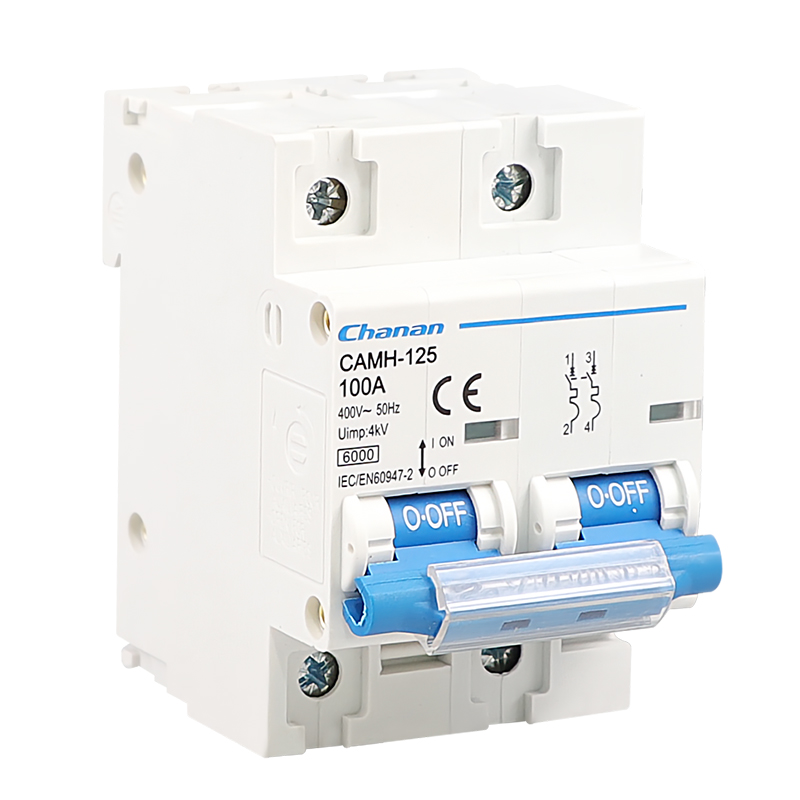

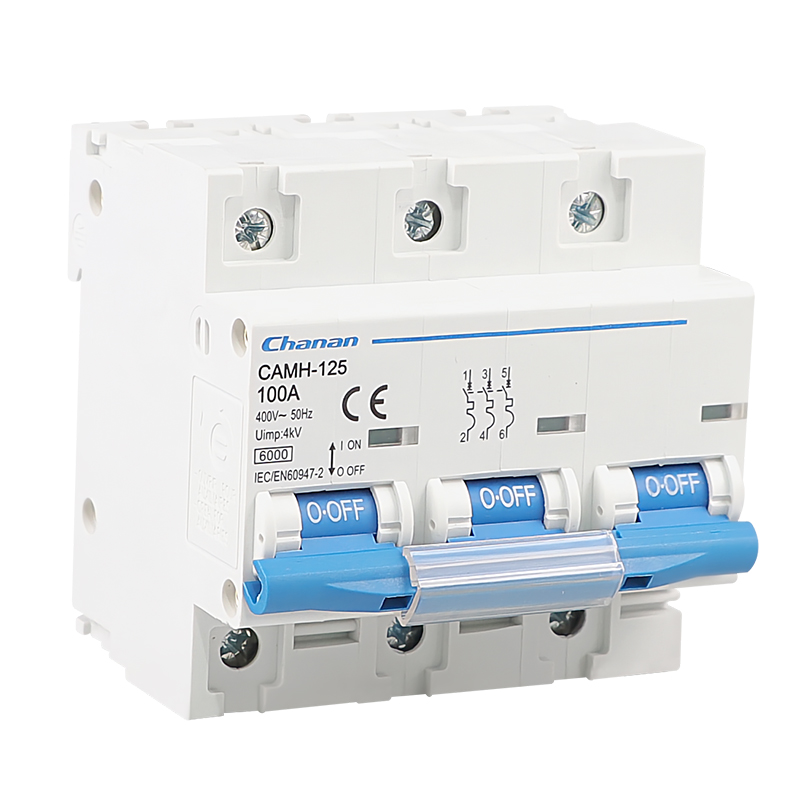

CAMH-125
Chanan
| Quantity: | |
|---|---|
The CAM2-125 Miniature Circuit Breaker, also referred to as the NC MCB, is a cornerstone in modern electrical circuit control. Designed for AC 50Hz or 60Hz control lines, this MCB is perfectly suited for systems with rated voltages of 230V/400V and a rated current capacity of up to 125A. It facilitates not only manual control but also excels in remote control applications and automated signal interruption for efficient line management. This versatile MCB is primarily implemented for its robust overload and short-circuit protection capabilities in circuitry.
The CAM2-125 MCB presents itself as an adaptable solution for varying electrical control needs. Its capability for remote control and response to automatic signals positions it as an ideal candidate for sophisticated and modern electrical systems, ensuring seamless control with minimal human intervention.
Preventing circuit damage and ensuring operational safety, the CAM2-125 MCB is exceptional in shielding systems from the hazards of overload and short-circuit incidents. This level of protection is pivotal for the longevity and reliability of any electrical installation.
In summary, the CAM2-125 MCB is engineered to deliver precision in electrical line control, providing superior protection against overloads and short circuits and offering versatile functionality for automated systems.

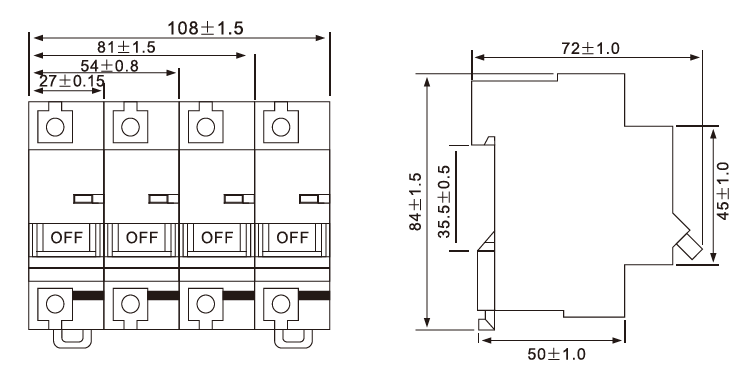

| Standard | IEC/EN60898-1 | IEC/EN60947-2 |
| Protection | Overcurrent and short circuit | |
| Type of trip | Thermo-magnetic | |
| No.of poles | 1P,2P,3P,4P,1P+N,3P+N | |
| Rated currents In | 1,2,3,4,5,6,10,16,20,25,32,40,50,63A | |
| Rated voltage Ue | 240/415V~ | |
| Rated frequency | 50/60Hz | |
| Rated breaking capacity | 4,500A | |
| Rated impulse withstand voltage(1.2/50) Uimp | 4,000V | |
| Dielectric test voltage at Ind. Freq.for 1 min | 2kV | |
| Thermal release characteristic | (1.13-1.45) x In | (1.05-1.30) x In |
| Magnetic release characteristic | B:(3-5) x In, C:(5-10) x In, D:(10-20) x In | (8-12) x In |
| Electrical life | 4,000 Cycles | |
| Mechanical life | 10,000 Cycles | |
| Contact position indicator | Yes | |
| Protection degree | IP20 | |
| Ambient temperature | -5℃ to +40℃ Max. 95%humidity | |
| Terminal connection type | Cable/Pin-type busbar | |
| Max.terminal size for cable | 50mm² | |
| Max.tightening torque | 3.5N.m | |
| Installation | Mounting on 35mm DIN rail | |
| Connection | From top and bottom | |
