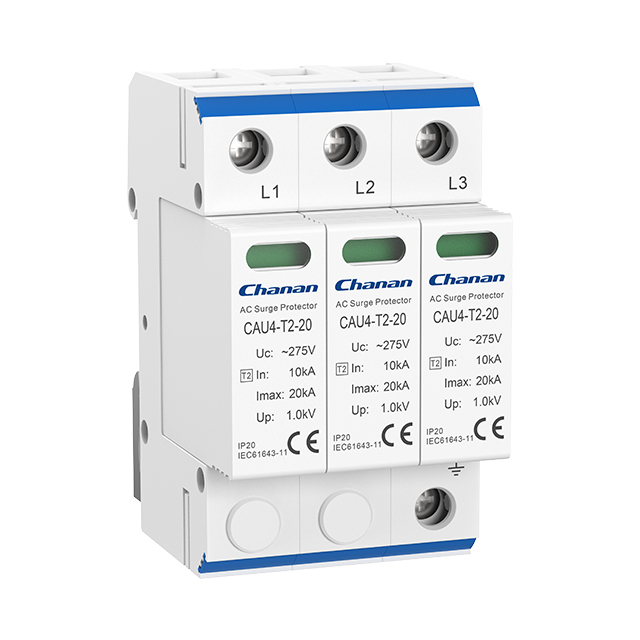

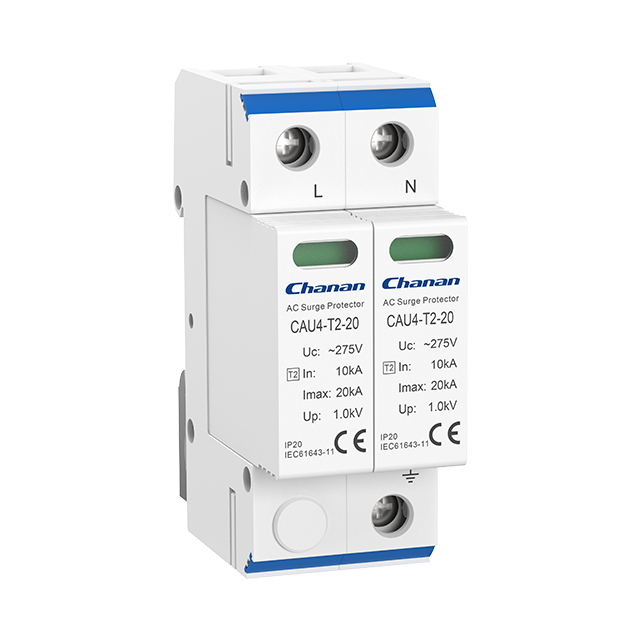

CAU4 Type 2 AC Surge Protector Imax 20kA Class II AC SPD

Standard: IEC/EN 61643-11
No. of Poles: 1,2,3,4,1P+NPE,3P+NPE
Surge Rating: Imax=20kA (8/20 µs)
IEC/EN Category: Type 2/Class II
Max. continuous operating voltage: 275, 320, 385, 440V
Housing: Pluggable Design

Model:
CAU5-T2-20
Brand:
Chanan

Availability:

Quantity:



Inquire

Product Description

Advanced AC Power Supply Defense with CAU4-T2-20

Introducing the CAU4-T2-20 Type 2 modular Surge Protection Device (SPD), an invaluable asset designed with a maximum discharge capacity of 20kA. This SPD is essential for the protection of equipment tethered to low voltage AC power supplies, providing a robust shield against transient overvoltages. Whether disturbances are caused by local lightning strikes or the complex switching of inductive or capacitive loads, this device is tuned to deliver unparalleled protection.

Innovative Design for Optimal Safety Compliance

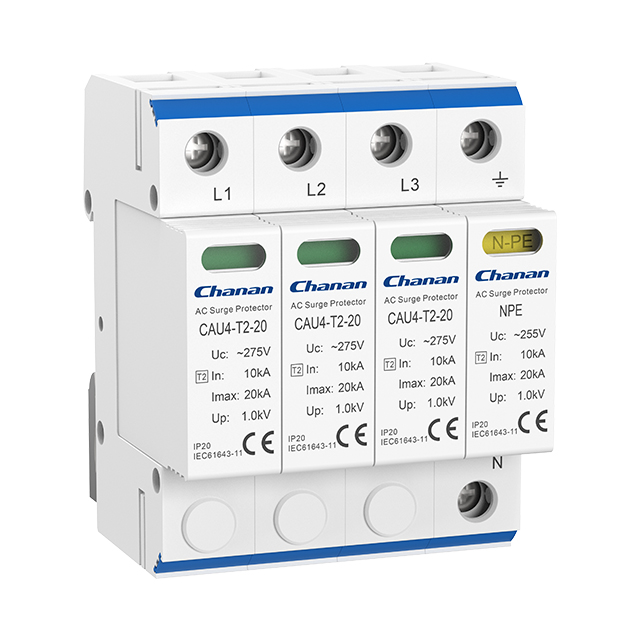

The CAU4-T2-20 features meticulously engineered N-PE and L-N modules, which are integral to preventing the misuse of SPD modules and ensuring device and system safety. Crafted in strict adherence to section 7.3.1 of the IEC61643-11 standard, the device's design helps sidestep potential malfunctions and dangerous scenarios. For example, it avoids the risks associated with inserting the N-PE module's gas discharge tube into the L-N module containing a varistor, an error which could lead to significant hazards such as fires.

Technical Parameters

Table 1

No.of poles	1P	2P	3P	4P	1P+NPE	3P+NPE
Network systems	TN-S, TN-C, TT(only L-N)	TN-S	TN-C	TN-S	TT, TN-S
Mode of protection	L-PE, N-PE(onlyTN-S), L-PEN, L-N	L-PE, N-PE	L-PEN	L-PE, N-PE	L-N, N-PE
Protective elements	High Energy MOV				High Energy MOV and GDT

Table 2

Maximum continuous operating voltage (L-N)	Uc	275V	320V	385V	440V
Maximum continuous operating voltage (N-PE)	Uc	255V
Norminal discharge current (8/20μs) (L-N)/(N-PE)	In	10kA
Maximum discharge current (8/20μs) (L-N)/(N-PE)	Imax	20kA
Voltage protection level (L-N)/(N-PE)	Up	1.0kV/1.5kV	1.2kV/1.5kV	1.45kV/1.5kV	1.6kV/1.5kV
Voltage protection level 5kA	Up	0.8kV	1.0kV	1.2kV	1.4kV
Response time (L-N)/(N-PE)	tA	≤25ns/≤100ns
Operating temperature range	Tu	-40℃ to +80℃
Max. Back-up fuse		125 A gL/gG
Operating state/fault indication		Green/Red(L-N),Yellow(N-PE)
Cross-section area (Min.)/(Max.)		4mm²/35mm²
Mounting		35 mm DIN Rail, EN 60715
Enclosure material		Thermal Plastic UL94-V0
Degree of protection		IP20 (built-in)

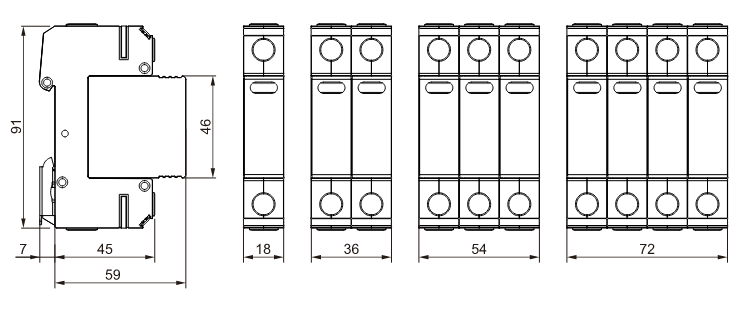

Overall Dimensions

Diverse Applications of Type 2 AC Surge Protectors

Protecting Commercial and Residential Electrical Infrastructure

Type 2 AC surge protectors with a robust 20kA maximum discharge capability are indispensable in safeguarding electrical installations within both the commercial and residential sectors. They are implemented in the service panels of buildings to ensure that surges, potentially harmful to appliances and delicate electronics, are intercepted. Their presence is critical in contemporary structures teeming with electronic devices that form the backbone of day-to-day functionalities.

Ensuring Compliance with Modern Electrical Standards

Incorporating these Type 2 surge protectors into electrical systems is more than a preventative measure; it's a compliance strategy. Their installation aligns with stringent electrical codes, such as the National Electrical Code (NEC), which often mandates surge protection within dwelling units. This alignment is vital to mitigating overvoltage risks and to upholding the safety integrity of the entire electrical infrastructure.

Fortifying Industrial Operations

The resilience of industrial environments is heightened with the use of these 20kA surge protectors. Control systems, sophisticated machinery, and other vital components are shielded from the nuances of power quality disturbances. In the industrial realm, where continued operation is paramount, these devices play a crucial role in minimizing downtime and averting equipment malfunctions.

Securing Renewable Energy Installations

Renewable energy systems, such as solar photovoltaic and wind power setups, also benefit from the defensive capabilities of these surge protectors. They ensure that the inverters and control systems, often vulnerable to electrical transients triggered by atmospheric activity or grid fluctuations, are duly protected.

Conclusion: A Universal Solution for Surge Protection

In essence, the Type 2 AC surge protectors, boasting a 20kA maximum discharge capacity, provide comprehensive surge defense across a diverse spectrum of applications. From protecting the integrity of home electronics to upholding industrial productivity and securing renewable energy systems, these SPDs are a cornerstone to modern electrical safety and regulation adherence.
