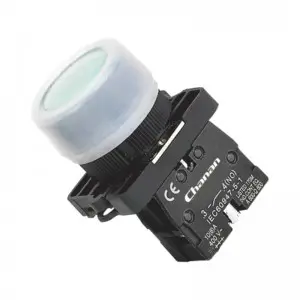

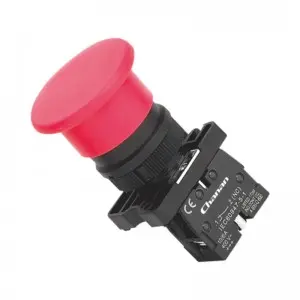

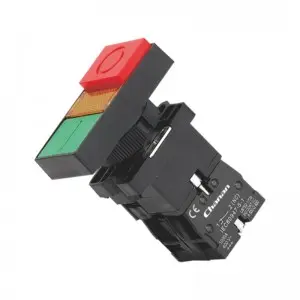

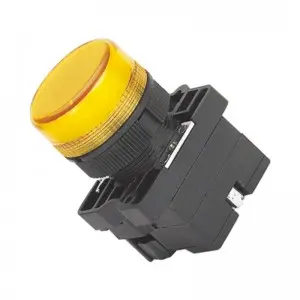

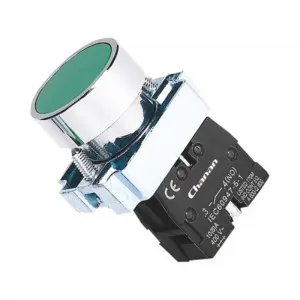

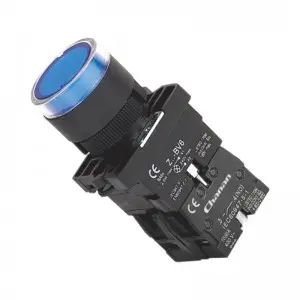

CB2 PLASTIC
| Quantity: | |
|---|---|
Discover the precision-crafted CB*-series Push Button Switches, your trusted partner for effective control within industrial environments. These robust pushbutton switches are tailored for circuits operating on AC 50Hz or 60Hz, with a versatile operation voltage capacity of up to 380V for AC and a steadfast 220V or below for DC.
Engineered for use in conjunction with magnetic starters, contactors, relays, and a wealth of other electrical circuits, the CB*-series ensures smooth management and control. Their innate versatility extends to usage as button indicators in settings requiring illuminated signals or indicators, adding valuable functionality to their design.
Each push button switch within the series aligns strictly with the IEC60947-5-1 standard. This adherence confirms the quality and safety of the switches, making them a reliable component in any industrial control system. With Google SEO principles integrated into their presentation
| Operation temperature: -5℃~+40℃ | Power-frequency withstand voltage: 2500V, 1min | |||||
| Operation humidity: 45%~85% | ELECTRIC durability: 50×104 | |||||
| Contact resistance: ≤50mΩ | Degree of protection: Ip40 | |||||
| Rated insulation voltage | Ui 660V | |||||
| Conventional thermal current | Ith 10A | |||||
| Rated operation voltage | Ue 380V 220V 110V 48V 24V | |||||
| Rated operation current | AC-15 | 2.5A | 4.5 | 6A | 8A | - |
| DC-13 | - | 0.3A | 0.6A | 1.3A | 2.5 | |
| Rated operational Voltage | Directness | Resistance | Transformer | |||||||
| 6V | 12V | 24V | 48V | 110V | 220V | 380V | 220V | 220V | 380V | |
| LED lamp | √ | √ | √ | - | - | - | - | - | √ | √ |
| Neon lamp | - | - | - | - | √ | √ | √ | √ | - | |
| Incandescence lamp | √ | √ | √ | √ | √ | √ | √ | - | √ | √ |
