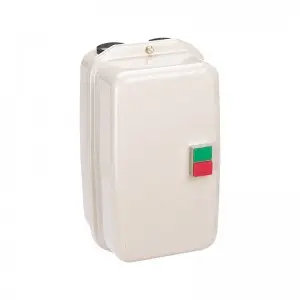

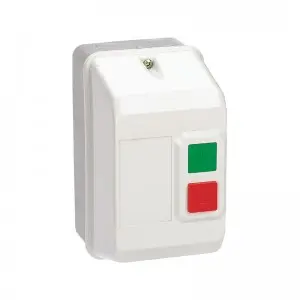

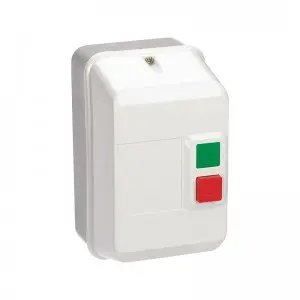

CQ1 Direct On Line (DOL) Starter

The magnetic starter is composed of steel stamping shell, steel bottom plate, ac contactor, thermal relay and corresponding wiring；It should be equipped with start and stop button switch and correctly connected with manual control signal cable；When the start button is pressed, the coil of the ac contactor installed in the magnetic starter gets energized, and the armature drives the contact group to close, and connects the power supply of the appliance (generally the motor), and at the same time, the auxiliary contact locks itself.

Model:
CQ1

Availability:

Quantity:



Inquire

Product Description

Magnetic Starter Description

The CQ1 series magnetic motor starter, commonly referred to as a "starter", is primarily engineered for circuits utilizing an AC current of 50Hz or 60Hz. This industrial magnetic starter is capable of handling a rated operational voltage up to 660V and offers control for motors with rated power up to 45kW (current up to 95A). It is designed for initiating a direct start and stop of electromotors, ensuring not only a smooth operation but also comprehensive protection against motor overload and phase failure. The robust design of this AC magnetic starter adheres to the stringent IEC/EN60947-4-1 standards, offering reliability for various applications including HVAC magnetic starters and compressor magnetic starters. Its advanced features make it a compact yet powerful solution for motor control and safety.

Feature
3.1 3-phase bimetal
3.2 Continuously readjustable current settings
3.3 Temperature compensation
3.4 Tripping indicator
3.5 Test button
3.6 Stop button
3.7 Manual and automatic reset button
3.8 Electrically separated 1N/O plus 1N/C contact

Model	Range of setting current A	current (A)	Maximum rated Power (kW)			Model of equipped AC contactor	TOR matched
			AC-3
			660V	380V	220V
CQ1-09/1301	0.1~0.16	9	5.5	4	2.2	CC1-09	CR2-13
CQ1-09/1302	0.16~0.25
CQ1-09/1303	0.25~0.4
CQ1-09/1304	0.4~0.63
CQ1-09/1305	0.63~1
CQ1-09/1306	1~1.6
CQ1-09/1307	1.6~2.5
CQ1-09/1308	2.5~4
CQ1-09/1310	4~6
CQ1-09/1312	5.5~8
CQ1-09/1314	7~10
CQ1-18/1314	7~10	18	10	7.5	4	CC1-18	CR2-13
CQ1-18/1316	9~13
CQ1-18/1321	12~18
CQ1-25/1321	12~18	25	15	11	5.5	CC1-25	CR2-13
CQ1-25/1322	17~25	25	15	11	5.5	CC1-25	CR2-13
CQ1-32/2353	23~32	32	18.5	15	7.5	CC1-32	CR2-23
CQ1-40/3355	30~40	40	30	18.5	11	CC1-40	CR2-33
CQ1-50/3357	37~50	50	33	22	15	CC1-50	CR2-33
CQ1-65/3359	48~65	65	37	30	18.5	CC1-65	CR2-33
CQ1-80/3361	55~70	80	45	37	22	CC1-80	CR2-33
CQ1-80/3363	63~80	80	45	37	22	CC1-80	CR2-33
CQ1-95/3365	80~93	95	45	45	25	CC1-95	CR2-33
