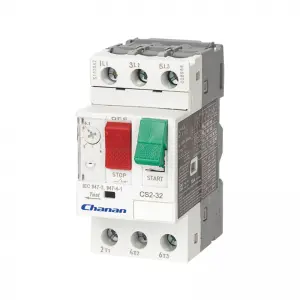

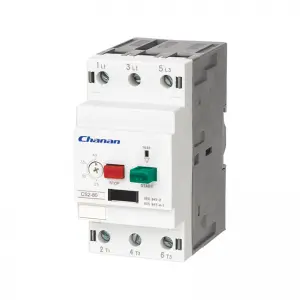

CS2
| Quantity: | |
|---|---|
Electric value: AC690V, 32A, 80A;
Standard: IEC/EN 60947-2, IEC60947-4-1
When selecting a Motor Protection Circuit Breaker (MPCB), it is crucial to consider the environment it will operate in to ensure optimal performance and longevity. Our MPCBs are designed to perform reliably in a variety of conditions:
Temperature Range: These breakers maintain efficiency between -5°C and +40°C. To guarantee long-term effectiveness, the average temperature within a 24-hour period should not surpass +35°C.
Altitude Tolerance: Our Motor Circuit Protectors (MPCB) operate flawlessly at altitudes up to 2000m, ensuring protection in diverse installations.
Humidity Regulation: In environments where they're mounted, relative humidity shouldn't exceed 50% at the highest temperature of +40°C. However, a Motor Starter Protector can withstand higher humidity, up to 90% at a cooler +20°C.
Pollution Grade Adaptability: With a pollution grade of III, our MPCBs are robust enough to handle industrial environments prone to moderate levels of dirt and pollutants.
Release Grade Specifications: Offering a 10A release grade for models CS2-32 and CS2-80, ensuring our circuit breakers meet Motor Protection Circuit Breaker sizing requirements for a variety of motor applications.
Operational Rating: Rated for continuous operational systems, they are built for enduring performance without interruption.
Mounting Guidelines: For the most stability, our MPCBs should be installed with a maximum of 5° tilt from the vertical plane. The installation site should be devoid of excessive shock, impact, or vibrations to guarantee a reliable Motor Protection Control Device.
Optimized operation and motor safety are the cornerstones of our MPCB electrical designs, providing a dependable solution for your motor circuit protection needs.
Technical Specification
| Series No. | Multiple of setting current | Initial status | Time | Expected results | Ambient temperature | |
| 1 | 1.05 | Cold status | t≥2h | Non-tripping | +20℃±2℃ | |
| 2 | 1.20 | Heat status (right after test.1) | t＜2h | Tripping | +20℃±2℃ | |
| 3 | 1.50 | Heat status (right after test.1) | Tripping class | 10A t＜2min | Tripping | +20℃±2℃ |
| 10 t＜4min | ||||||
| 4 | 7.20 | Cold status | Tripping class | 10A 2s＜t≤10s | Tripping | +20℃±2℃ |
Phase failure protection properties
| Series No. | Multiple of setting current | Initial status | Time | Expected results | Ambient temperature | |
| Any 2 phase | The other phase | |||||
| 1 | 1.0 | 0.9 | Cold status | t≥2h | Non-tripping | +20℃±2℃ |
| 2 | 1.15 | 0 | Heat status (right after test.1) | t ＜2h | Tripping | +20℃±2℃ |
Temperature compensation properties
| Series No. | Multiple of setting current | Initial status | Time | Expected results | Ambient temperature |
| 1 | 1.0 | Cold status | t≥2h | Non-tripping | +40℃±2℃ |
| 2 | 1.2 | Heat status (right after test.1) | t＜2h | Tripping | +40℃±2℃ |
| 3 | 1.05 | Cold status | t≥2h | Non-tripping | -5℃±2℃ |
| 4 | 1.3 | Heat status (right after test.3) | t＜2h | Tripping | -5℃±2℃ |
| Model of overload relay | Code | Rated current (A) | Rated ultimate short-circuit breaking capacity Icu(kA) | Rated service short-circuit breaking capacity Ics(kA) | Standard rated power of three-phase motor (kW) | ||||||
| 230/240V | 400/415V | 660/690V | 230/240V | 400/415V | 660/690V | 230/240V | 400/415V | 660/690V | |||
| CS2-32 | 3201 | 0.1~0.16 | 100 | 100 | 100 | 100 | 100 | 100 | - | - | - |
3202 | 0.16~0.25 | 100 | 100 | 100 | 100 | 100 | 100 | - | - | - | |
3203 | 0.25~0.4 | 100 | 100 | 100 | 100 | 100 | 100 | - | - | - | |
3204 | 0.4~0.63 | 100 | 100 | 100 | 100 | 100 | 100 | - | - | 0.37 | |
3205 | 0.63~1 | 100 | 100 | 100 | 100 | 100 | 100 | - | - | 0.55 | |
3206 | 1~1.6 | 100 | 100 | 100 | 100 | 100 | 100 | - | - | 1.1 | |
3207 | 1.6~2.5 | 100 | 100 | 3 | 100 | 100 | 2.25 | 0.37 | 0.75 | 1.5 | |
3208 | 2.5~4 | 100 | 100 | 3 | 100 | 100 | 2.25 | 0.75 | 1.5 | 3 | |
3210 | 4~6.3 | 100 | 100 | 3 | 100 | 100 | 2.25 | 1.1 | 2.2 | 4 | |
3214 | 6~10 | 100 | 100 | 3 | 100 | 100 | 2.25 | 2.2 | 4 | 7.5 | |
3216 | 9~14 | 100 | 15 | 3 | 100 | 7.5 | 2.25 | 3 | 5.5 | 9 | |
3220 | 13~18 | 100 | 15 | 3 | 100 | 7.5 | 2.25 | 4 | 9 | 11 | |
3221 | 17~23 | 50 | 15 | 3 | 50 | 6 | 2.25 | 5.5 | 11 | 15 | |
3222 | 20~25 | 50 | 15 | 3 | 50 | 6 | 2.25 | 5.5 | 11 | 18.5 | |
3232 | 24~32 | 50 | 15 | 3 | 50 | 6 | 2.25 | 7.5 | 12.5 | 22 | |
| CS2-80 | 8025 | 16~25 | - | 15 | - | - | 7.5 | - | 5.5 | 11 | - |
8040 | 25~40 | - | 15 | - | - | 7.5 | - | 11 | 22 | - | |
8063 | 40~63 | - | 15 | - | - | 7.5 | - | 15 | 33 | - | |
8080 | 56~80 | - | 15 | - | - | 7.5 | - | 22 | 45 | - | |
