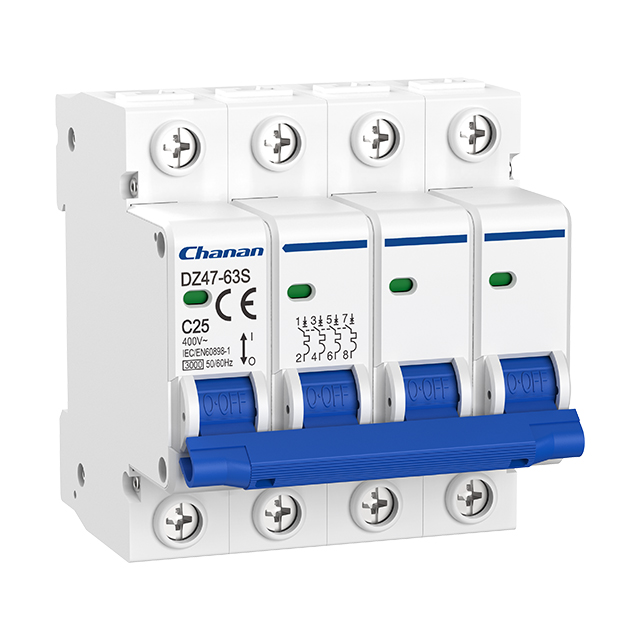

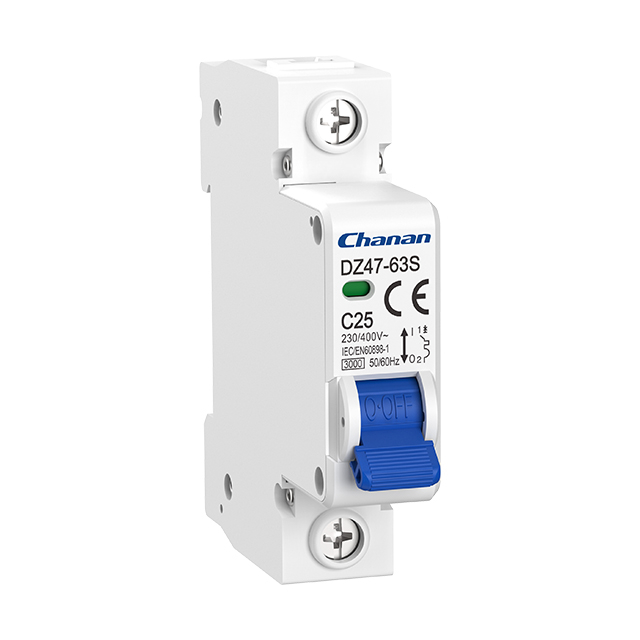

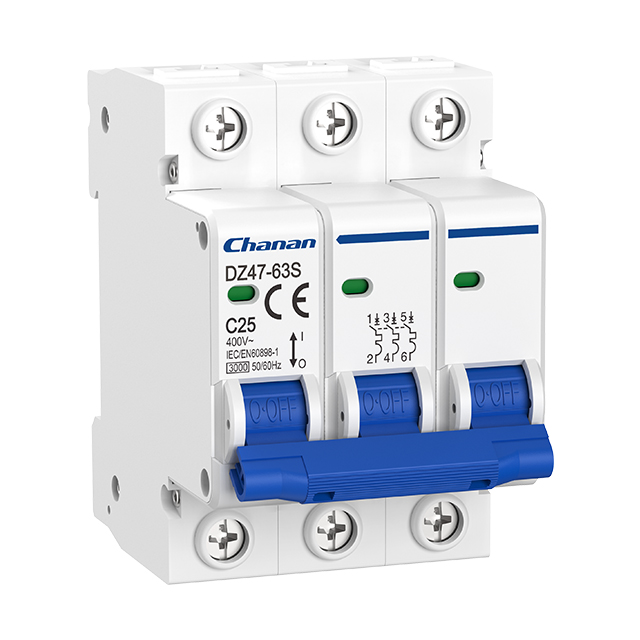

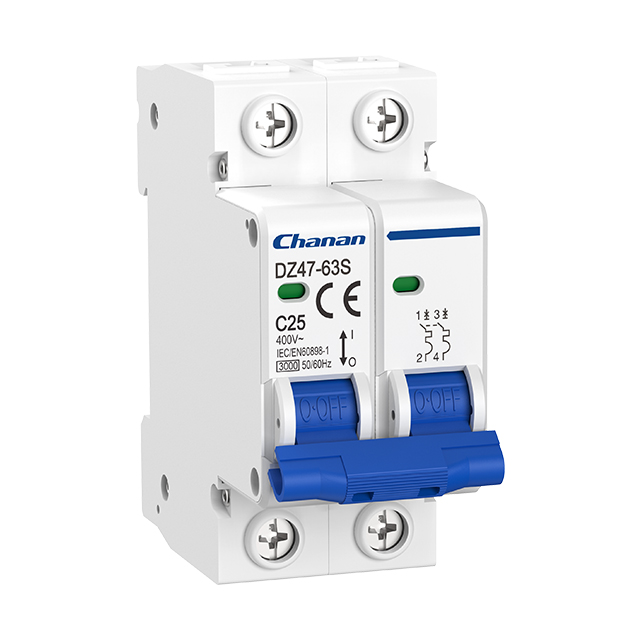

DZ47-63S
Chanan
| Quantity: | |
|---|---|
The DZ47-63S miniature circuit breaker, known for its efficiency and reliability, is primarily deployed in AC 50/60Hz circuit setups. It is designed to work effortlessly with operating voltages of 240V/415V and below, with a rated current capacity of up to 63A. This MCB excels in modern building electrical infrastructures and is adept at providing essential overload and short circuit protection for equipment. It also doubles as a dependable device for the infrequent operation and safe isolation of electrical lines.
With the DZ47-63S MCB, you get more than what you pay for. It stands as an economical solution without compromising on capability. Unlike other circuit breakers with similar breaking capacities, it is affordably priced, making it an attractive choice for comprehensive circuit protection.
In the ever-evolving landscape of electrical installations, the compact size of the DZ47-63S MCB is a significant advantage. This design feature makes it indispensable for setups with limited space while maintaining its protective performance.
The ease with which the DZ47-63S MCB can be installed is a boon for electricians and technicians. It demands minimal effort for the connection and disconnection process, streamlining the installation and maintenance workflow.
Providing stalwart protection against both overload and short circuit scenarios, the DZ47-63S MCB is an essential safeguard for your electrical equipment, mitigating potential risks and averting costly damages.
Constructed from high-quality materials, the DZ47-63S MCB is built to last. Its durable build not only promises an extended lifespan but also minimizes the frequency of replacements, making it a sound investment for any application.
The versatility of the DZ47-63S MCB is one of its most compelling features. It is suitable for a broad spectrum of applications, be it residential, commercial, or industrial, thereby serving a wide-ranging clientele with diverse protection needs.
In conclusion, the DZ47-63S MCB encapsulates the essential attributes of a superior circuit protection solution: cost-effectiveness, space-efficient design, ease of installation, robust protection, long-lasting durability, and wide applicability.
| Standard | IEC/EN60898-1 |
| Protection | Overcurrent and short circuit |
| Type of trip | Thermo-magnetic |
| No.of poles | 1P,2P,3P,4P,1P+N,3P+N |
| Rated currents In | 1,2,3,4,5,6,10,16,20,25,32,40,50,63A |
| Rated voltage Ue | 240/415V~ |
| Rated insulation voltage Ui | 500V |
| Rated frequency | 50/60Hz |
| Rated breaking capacity | 4,500A |
| Rated impulse withstand voltage(1.2/50) Uimp | 4,000V |
| Dielectric test voltage at Ind. Freq.for 1 min | 2kV |
| Thermal release characteristic | (1.13-1.45) x In |
| Magnetic release characteristic | B:(3-5) x In, C:(5-10) x In, D:(10-20) x In |
| Electrical life | 4,000 Cycles |
| Mechanical life | 10,000 Cycles |
| Contact position indicator | Yes |
| Protection degree | IP20 |
| Ambient temperature | -5℃ to +40℃Max.95%humidity |
| Terminal connection type | Cable/Pin-type busbar |
| Max.terminal size for cable | 25mm² |
| Max.tightening torque | 2.5N.m |
| Installation | Mounting on 35mm DIN rail |
| Connection | From top and bottom |
