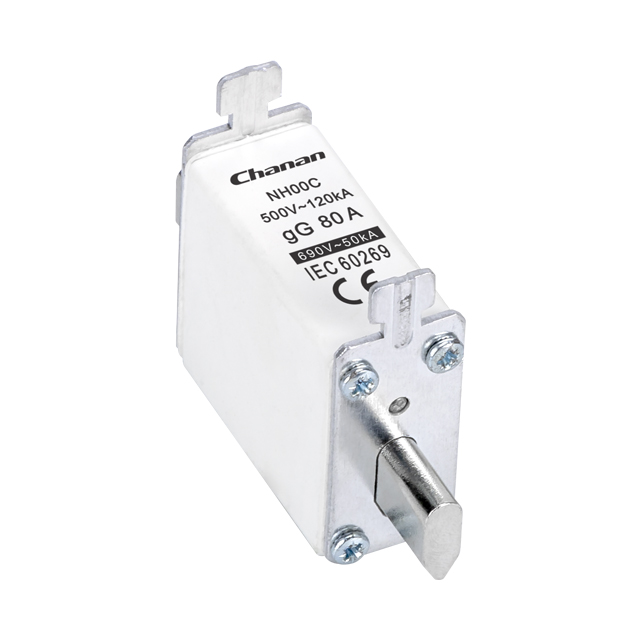

NH00C
Chanan
| Quantity: | |
|---|---|
NH000 or NH00C fuse link is a specific size within the NH fuse system, which is "Low-Voltage High-Performance Fuse." The NH fuse system is a standardized set of fuses commonly used in Europe for industrial applications.
Here are some key points about the NH000 fuse link:
Size and Ratings: NH000 is the smallest size in the NH fuse series, which includes sizes from NH000 to NH4. The NH000 fuses are designed for low-voltage applications and are rated for specific current and voltage levels, which determine the amount of electrical current the fuse can safely conduct before blowing or interrupting the circuit.

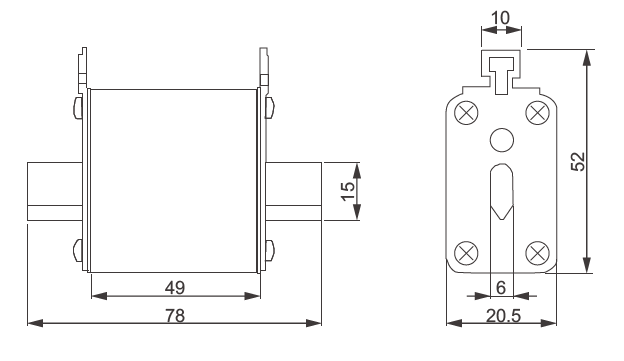

Design: The NH000 fuse link typically has a knife-blade design with contact blades at both ends. This design allows for easy insertion and removal from fuse bases or holders, which are often part of a disconnect switch.
Protection: The primary function of an NH000 fuse link is to protect electrical circuits and devices from overcurrent, which can be caused by overloads or short circuits. When an overcurrent occurs, the fuse link melts (also known as "blowing" or "tripping"), interrupting the flow of electricity and protecting downstream equipment.
Applications: These fuses are used in various industrial applications, including motor protection, distribution boards, and control systems. They are designed to quickly clear high fault currents, ensuring safety and reducing the risk of damage to electrical components.
Standardization: The NH fuse system is standardized according to International Electrotechnical Commission (IEC) standards, ensuring consistency in fuse performance and dimensions across different manufacturers.
Identification: An NH000 fuse link is identified not only by its physical size but also by its rated current and breaking capacity. This information is usually printed on the fuse body or on a label attached to it.
The NH000 fuse link is part of a broader range of fuses that provide reliable overcurrent protection for industrial installations, ensuring safety and continuity of service in electrical systems.
| Model | Equivalent models | Rated current (A) | Rated voltage (V) | I²t (Amps² seconds) | Power loss（W） | |
| Pre-arcing | I 120kA at 500V | |||||
| NH000-2A | RT16-000 NT000 RT20-000 RO30A 3NA3 | 2 | 500 690 | 3 | 6 | 3.9 |
| NH000-4A | 4 | 6 | 12 | 1.8 | ||
| NH000-6A | 6 | 14 | 21 | 2 | ||
| NH000-10A | 10 | 58 | 290 | 1.5 | ||
| NH000-16A | 16 | 234 | 1200 | 2.3 | ||
| NH000-20A | 20 | 490 | 2500 | 2.2 | ||
| NH000-25A | 25 | 920 | 4600 | 3.1 | ||
| NH000-32A | 32 | 1800 | 9000 | 3.4 | ||
| NH000-35A | 35 | 2400 | 11800 | 3.7 | ||
| NH000-40A | 40 | 3300 | 16500 | 4 | ||
| NH000-50A | 50 | 5900 | 29500 | 4.9 | ||
| NH000-63A | 63 | 6300 | 24900 | 4.6 | ||
| NH000-80A | 80 | 9800 | 39800 | 6.3 | ||
| NH000-100A | 100 | 18100 | 72300 | 7.4 | ||
