CAPV-H
Chanan
| Quantity: | |
|---|---|

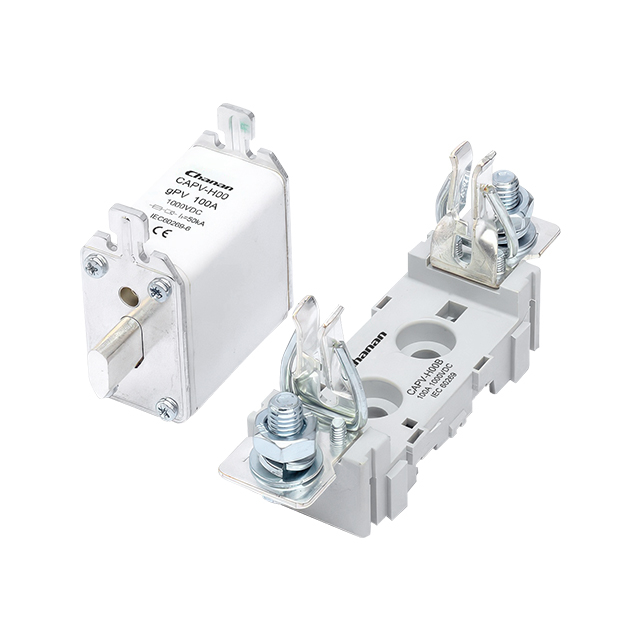

CAPV-H series knife-type contact gPV photovoltaic fuses are specially designed to protect DC systems with voltages of 1500VDC and below. They are suitable for providing DC protection for solar panels, combiner boxes and battery energy storage systems.

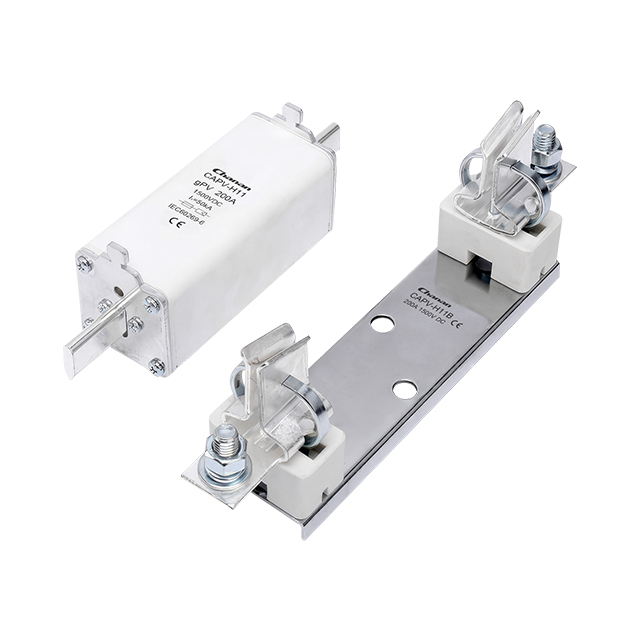

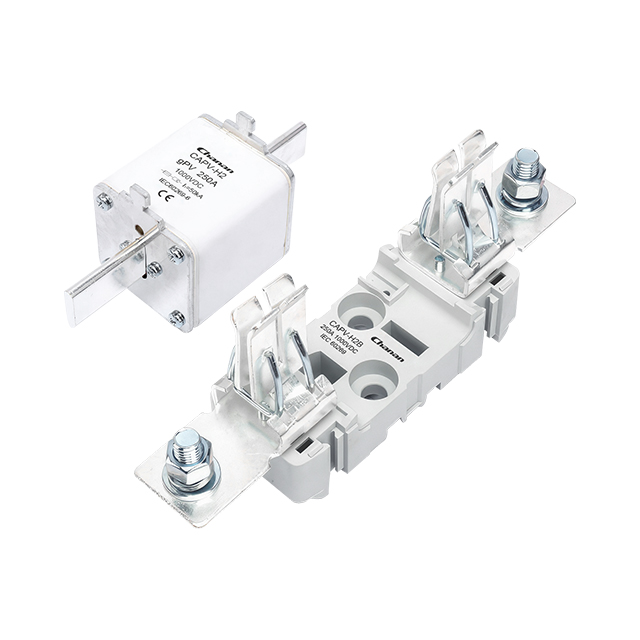

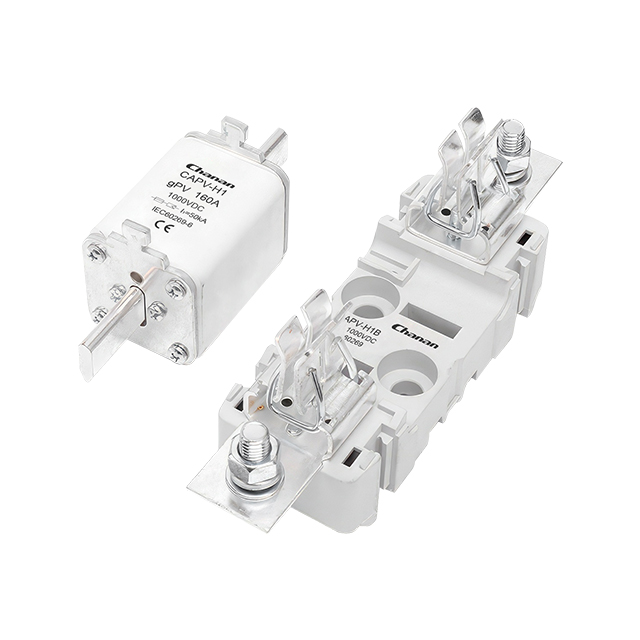

CAPV-H series fuses can be divided into 7 specifications according to the size of the fuse body: CAPV-H00 (32-100A). CAPV-H1 (50-160A), CAPV-H2 (125-250A), CAPV-H3 (250-400A), CAPV-H1XL (63-200A), CAPV-H2XL (125-250A), CAPV-H3L (250-400A).
| Model | Rated current (A) | Rated voltage (VDC) | Fuse Base Model | Breaking Capacity（kA） | Power loss（W) 1.0In |
| CAPV-H00 | 32 | 1000 | CAPV-H00B | 50 | 9 |
| 40 | 11 | ||||
| 50 | 13 | ||||
| 63 | 18 | ||||
| 80 | 22 | ||||
| 100 | 25 | ||||
| CAPV-H1 | 50 | 1000 | CAPV-H1B | 50 | 21 |
| 63 | 25 | ||||
| 80 | 28 | ||||
| 100 | 31 | ||||
| 125 | 41.5 | ||||
| 160 | 46 | ||||
| CAPV-H2 | 125 | 1000 | CAPV-H2B | 50 | 26 |
| 160 | 28 | ||||
| 200 | 32 | ||||
| 250 | 38 | ||||
| CAPV-H3 | 250 | 1000 | CAPV-H3B | 50 | 38 |
| 350 | 45 | ||||
| 400 | 50 | ||||
| CAPV-H1XL | 63 | 1500 | CAPV-H1XLB | 50 | 30 |
| 80 | 36.5 | ||||
| 100 | 44.5 | ||||
| 125 | 54 | ||||
| 160 | 60 | ||||
| 200 | 62 | ||||
| CAPV-H2XL | 125 | 1500 | CAPV-H2XLB | 50 | 38.5 |
| 160 | 53 | ||||
| 200 | 56 | ||||
| 250 | 65 | ||||
| CAPV-H3L | 250 | 1500 | CAPV-H3LB | 50 | 62.5 |
| 315 | 94 | ||||
| 350 | 145 | ||||
| 400 | 166 |
CAPV-H series knife-type contact gPV photovoltaic fuses are specially designed to protect DC systems with voltages of 1500VDC and below. They are suitable for providing DC protection for solar panels, combiner boxes and battery energy storage systems.
CAPV-H series fuses can be divided into 7 specifications according to the size of the fuse body: CAPV-H00 (32-100A). CAPV-H1 (50-160A), CAPV-H2 (125-250A), CAPV-H3 (250-400A), CAPV-H1XL (63-200A), CAPV-H2XL (125-250A), CAPV-H3L (250-400A).
| Model | Rated current (A) | Rated voltage (VDC) | Fuse Base Model | Breaking Capacity（kA） | Power loss（W) 1.0In |
| CAPV-H00 | 32 | 1000 | CAPV-H00B | 50 | 9 |
| 40 | 11 | ||||
| 50 | 13 | ||||
| 63 | 18 | ||||
| 80 | 22 | ||||
| 100 | 25 | ||||
| CAPV-H1 | 50 | 1000 | CAPV-H1B | 50 | 21 |
| 63 | 25 | ||||
| 80 | 28 | ||||
| 100 | 31 | ||||
| 125 | 41.5 | ||||
| 160 | 46 | ||||
| CAPV-H2 | 125 | 1000 | CAPV-H2B | 50 | 26 |
| 160 | 28 | ||||
| 200 | 32 | ||||
| 250 | 38 | ||||
| CAPV-H3 | 250 | 1000 | CAPV-H3B | 50 | 38 |
| 350 | 45 | ||||
| 400 | 50 | ||||
| CAPV-H1XL | 63 | 1500 | CAPV-H1XLB | 50 | 30 |
| 80 | 36.5 | ||||
| 100 | 44.5 | ||||
| 125 | 54 | ||||
| 160 | 60 | ||||
| 200 | 62 | ||||
| CAPV-H2XL | 125 | 1500 | CAPV-H2XLB | 50 | 38.5 |
| 160 | 53 | ||||
| 200 | 56 | ||||
| 250 | 65 | ||||
| CAPV-H3L | 250 | 1500 | CAPV-H3LB | 50 | 62.5 |
| 315 | 94 | ||||
| 350 | 145 | ||||
| 400 | 166 |
