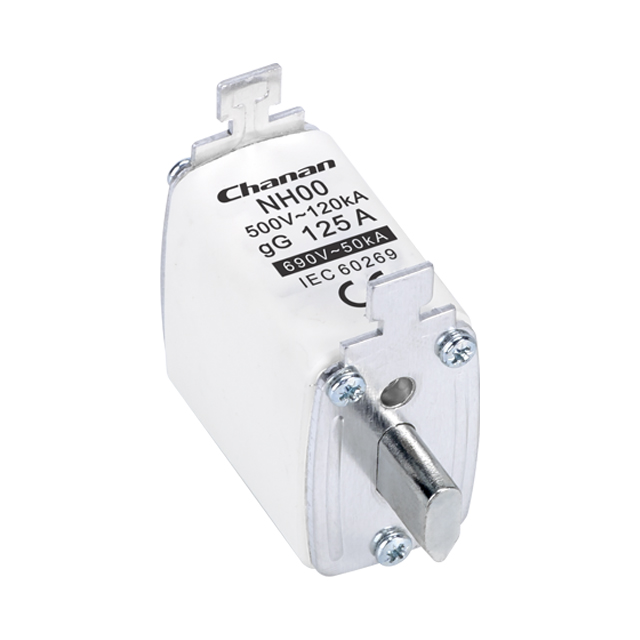

NH00
Chanan
| Quantity: | |
|---|---|
NH00 fuse link is a component of the NH fuse system, which is a type of industrial fuse used primarily in Europe but recognized internationally. The "00" specifies the physical size within the NH fuse series, which ranges from NH000 (the smallest) to NH4 (the largest).

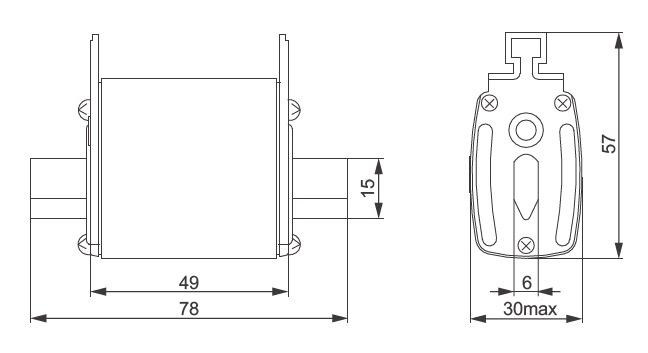

Physical Size: The "00" designation refers to the size of the fuse, which is standardized to fit into appropriate fuse holders and switchgear.
Electrical Ratings: NH00 fuse links are rated for specific voltage and current levels, which determine how much electrical current they can carry without blowing and the maximum voltage they can safely interrupt.
Protection: The main purpose of an NH00 fuse link is to safeguard electrical circuits from overcurrent conditions caused by overloads or short circuits. When an overcurrent condition occurs, the fuse link will melt, breaking the circuit and preventing potential damage to equipment or fire hazards.
Design: Typically, NH00 fuse links have a knife-blade design with contact blades at both ends, making them easy to install and replace in fuse bases or disconnect switches.
Applications: These fuses are commonly used in industrial settings for protecting motors, transformers, and other electrical equipment. They are designed to quickly clear high fault currents to ensure safety and minimize equipment damage.
Standardization: NH fuses are designed according to International Electrotechnical Commission (IEC) standards, ensuring consistent performance and compatibility across various brands and regions.
Identification: Along with the physical size and shape, NH00 fuse links will be marked with their rated current and breaking capacity to ensure that the correct fuse is used in each application.
NH00 fuse links are an integral part of electrical safety in industrial environments, providing reliable overcurrent protection and maintaining system integrity.
| Model | Equivalent models | Rated current (A) | Rated voltage (V) | I²t (Amps² seconds) | Power loss（W） | |
| Pre-arcing | I1 120kA at 500V | |||||
| NH00-50A | RT16-00 NT00 RT20-00 RO31 3NA3 | 50 | 500 690 | 5800 | 21500 | 5 |
| NH00-63A | 63 | 5800 | 25000 | 5 | ||
| NH00-80A | 80 | 11000 | 35000 | 7 | ||
| NH00-100A | 100 | 19000 | 6000 | 7.5 | ||
| NH00-125A | 125 | 25000 | 125000 | 10 | ||
| NH00-160A | 160 | 64000 | 310000 | 10 | ||
